Title: Roots of SPAR - Shared Planning and Activity Representation
Author: Austin Tate, AIAI, University of Edinburgh
Date: 17-Nov-97
This article describes the previous work which has been used to create the initial SPAR representation. Key examples of the work drawn upon are published in the Knowledge Engineering Review Special Issue on Ontologies [Uschold & Tate, 1998]. The paper provides a comprehensive bibliography and related world wide web resources for work in the area of plan, process and activity representation.
SPAR is now being subjected to refinement during several review cycles by a number of expert and user panels.
The design of SPAR provides structure where there is a consensus on the key entities and relationships amongst those creating and using planning and activity representations. It specifies the structure to a level of detail judged to relate to the needs of the majority of potential users of the representation. However, planning and activity representations are the subject of active research. Some of the current approaches are conceptually simpler or more uniform than SPAR is intended to be - e.g., using pure logic or all constraint [Joslin, 1996; Tate, 1996a] bases. Even where the structure of SPAR itself is not suitable as a basis for novel research or applications, the intention is that the semantics of the SPAR Representation should be clearly defined such that it can be translated to alternative representations. This also provides the important capability that SPAR-represented information will be able to be communicated to future representational frameworks as and when those are adopted in a widespread way.
Within the SPAR structure it is possible to specialise the representation through the provision of application, domain or technology specific extensions via Plug-in Ontologies or Grammars with their associated Lexicons of the terms used. This is the level at which current and novel representations of activity and the constraints on activity will be attached. The plug in ontologies or grammars may draw on standard representations being adopted in the AI planning research community such as PDDL [McDermott et. al., 1997] or more constrained grammars may be specified for practical use in today's applications.
Where further shared structure can be agreed in future within a sufficiently broad community, it could be included in a future revision of SPAR. Where more limited communities representing vendors, specific sector users or research interest groups agree on a shared representation, it may be possible to create an extension used within that community using a mechanism such as the PIF "Partially Shared Views" (PSVs) [Lee & Malone, 1990].
Any practical use of a planning and activity representation naturally will relate to more detailed models of the objects involved or the organisational relationships between the people or agents included. It is not intended that SPAR itself prescribes structure for detailed object models or for detailed organisation or agent relationship models. SPAR can co-exist with one or more such models which can therefore be chosen to reflect standards established elsewhere. An example of a detailed object description standard is that established by International Standards Organisation's STEP [ISO, 1995] or EXPRESS [Express, 1995] for product interchange in manufacturing. Examples of organisational and agent relationships models can be found in the Enterprise Models [Fraser & Tate, 1995; Fox et. al., 1993] and the ORDIT Organisational Model [Blyth et. al., 1993].
SPAR may be expressed or represented in a wide variety of ways. It is intended that reference designs and implementations for a number of those which will be mostly commonly useful will be provided. KIF [Genesereth & Fikes, 1992], CommonKADS Conceptual Modelling Language [Schreiber et. al., 1994], Conceptual Graphs [Sowa, 1984], LOOM [Brill, 1993], CDIF [Ernst, 1997] or other representations of SPAR are possible.
In 1994, a group was formed to create an ontology for plans, using new insights gained over the last few years in the knowledge-sharing community in the US [Neches et. al., 1991; Genesereth & Fikes, 1992; Gruber, 1993] and Europe [Uschold, 1998; Breuker & van de Velde, 1994]. This led to an outline plan model called KRSL-Plans [Tate, 1996b]. However, this work was not brought to a conclusion though it did feed into subsequent work.
Since 1995, there have been a number of initiatives to standardise terminology in the subject area of activities and plans. These include enterprise processes in PIF (the Process Interchange Format [Lee et. al., 1996]); workflow (International Workflow Management Coalition [WfMC, 1994]); CASE systems data modelling exchange in CDIF [Ernst, 1997; Navarro, 1996]; manufacturing processes (NIST's Process Specification Language [Schlenoff et. al., 1996]); and the Object Model Working Group's CPR (Core Plan Representation - [Pease & Carrico, 1997]). These initiatives have involved academic, government and industry participants.
In the US military planning research community and beyond, there has been work to use verb/noun phrase grammars to represent plan objectives and activities [Valente et al., 1996; Hess, 1996; Kingston et. al., 1997; Drabble et. al., 1997].
In August 1997, DARPA and the Air Force Research Laboratory (Rome) Programme Managers for ARPI proposed a renewed effort to tap into this accumulated expertise, and to create a shared plan representation suitable for practical use in ARPI and on applied research programmes in their communities. The representation is expected to be considerably more detailed than the more conceptual ontology efforts which have gone before it.
SPAR is drawing on this wide range of previous work.
Plan ontologies and representations created by participants of ARPI-related projects include:

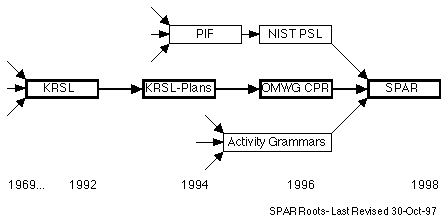

Since 1994, work within ARPI on plan representations has proceeded in parallel with pre-standards work on process interchange and representation. ARPI researchers have been involved in these activities, and others have supported the continuing ARPI work - including helping in the development and review of SPAR. The relevant standards activities that have been jointly pursued are:
A common model of processes and activity has emerged from this work and has been used as the basis for the initial version of SPAR.
Then at a second level of detail, the statements are:
The model is expected to develop from this base.
An initial version of SPAR has been produced utilising the wide range of previous work on plan, process and activity ontologies and representations. This is being subjected to review and refinement through a number of Request For Comment documents involving technical specialists and application-oriented user panels. Following these reviews, the intention is to publish a first version in mid 1998 and then to collect experience in the application of the representation.
It is intended that a process for sharing experiences of using SPAR will be established and continuing design issues tracked. A collected volume of papers describing SPAR and relating experience in using, adapting or extending the representation is planned in the medium term.
Thanks to the many people who have provided input to the planning, process and activity ontologies which have provided the roots for the work on SPAR and enabled rapid progress to be made in its initial development. Special thanks to Steve Polyak for helping to complete the extensive set of references in this paper. Thanks to Paul Krause, Simon Parsons, Steve Polyak and Mike Uschold for reviewing the text.
