Tate, A. (1998) "Roots of SPAR - Shared Planning and Activity Representation", The Knowledge Engineering Review, Vol. 13(1), pp. 121-128, Special Issue on "Putting Ontologies to Use" (eds. Uschold, M. and Tate, A.), Cambridge University Press.

Title: Roots of SPAR - Shared Planning and Activity Representation
Author: Austin Tate, AIAI, University of Edinburgh
Date: 17-Nov-97

Abstract

The Defense Advanced Research Projects Agency (DARPA) and US Air Force Research Laboratory Planning Initiative (ARPI) has initiated a project to draw on the range of previous work in planning and activity ontologies to create a practically useful "Shared Planning and Activity Representation" - SPAR - for use in technology and applications projects within their communities.

This article describes the previous work which has been used to create the initial SPAR representation. Key examples of the work drawn upon are published in the Knowledge Engineering Review Special Issue on Ontologies [Uschold & Tate, 1998]. The paper provides a comprehensive bibliography and related world wide web resources for work in the area of plan, process and activity representation.

SPAR is now being subjected to refinement during several review cycles by a number of expert and user panels.

Aims for SPAR

It is important that information about processes, plans and activities are sharable within and across organisations. Cooperation and coordination of the planning, monitoring and workflows of the organisations can be assisted by having a clear shared model of what comprises plans, processes and activities. The Shared Planning and Activity Representation (SPAR) is intended to contribute to a range of purposes including domain modelling, plan generation, plan analysis, plan case capture, plan communication, behaviour modelling, etc. By having a shared model of what constitutes a plan, process or activity, organisational knowledge can be harnessed and used effectively.

The design of SPAR provides structure where there is a consensus on the key entities and relationships amongst those creating and using planning and activity representations. It specifies the structure to a level of detail judged to relate to the needs of the majority of potential users of the representation. However, planning and activity representations are the subject of active research. Some of the current approaches are conceptually simpler or more uniform than SPAR is intended to be - e.g., using pure logic or all constraint [Joslin, 1996; Tate, 1996a] bases. Even where the structure of SPAR itself is not suitable as a basis for novel research or applications, the intention is that the semantics of the SPAR Representation should be clearly defined such that it can be translated to alternative representations. This also provides the important capability that SPAR-represented information will be able to be communicated to future representational frameworks as and when those are adopted in a widespread way.

Scope

The principal scope of SPAR is to represent past, present and possible future activity and the command, planning and control processes that create and execute plans meant to guide or constrain future activity. It can be used descriptively for past and present activity and prescriptively for possible future activity.

Within the SPAR structure it is possible to specialise the representation through the provision of application, domain or technology specific extensions via Plug-in Ontologies or Grammars with their associated Lexicons of the terms used. This is the level at which current and novel representations of activity and the constraints on activity will be attached. The plug in ontologies or grammars may draw on standard representations being adopted in the AI planning research community such as PDDL [McDermott et. al., 1997] or more constrained grammars may be specified for practical use in today's applications.

Where further shared structure can be agreed in future within a sufficiently broad community, it could be included in a future revision of SPAR. Where more limited communities representing vendors, specific sector users or research interest groups agree on a shared representation, it may be possible to create an extension used within that community using a mechanism such as the PIF "Partially Shared Views" (PSVs) [Lee & Malone, 1990].

Any practical use of a planning and activity representation naturally will relate to more detailed models of the objects involved or the organisational relationships between the people or agents included. It is not intended that SPAR itself prescribes structure for detailed object models or for detailed organisation or agent relationship models. SPAR can co-exist with one or more such models which can therefore be chosen to reflect standards established elsewhere. An example of a detailed object description standard is that established by International Standards Organisation's STEP [ISO, 1995] or EXPRESS [Express, 1995] for product interchange in manufacturing. Examples of organisational and agent relationships models can be found in the Enterprise Models [Fraser & Tate, 1995; Fox et. al., 1993] and the ORDIT Organisational Model [Blyth et. al., 1993].

SPAR may be expressed or represented in a wide variety of ways. It is intended that reference designs and implementations for a number of those which will be mostly commonly useful will be provided. KIF [Genesereth & Fikes, 1992], CommonKADS Conceptual Modelling Language [Schreiber et. al., 1994], Conceptual Graphs [Sowa, 1984], LOOM [Brill, 1993], CDIF [Ernst, 1997] or other representations of SPAR are possible.

History

The AI planning community has used explicit domain description languages and plan definitions for more than 25 years [Tate et. al., 1990; Allen et. al., 1990]. As long ago as the late 1960s, work on the STRIPS operator representation of actions [Fikes & Nilsson, 1971] was used to practical effect for planning and control of the SRI Shakey robot. This early application was based upon more theoretical roots in the QA3 theorem prover [Green, 1969] and situation calculus [McCarthy & Hayes, 1969]. There is now a wealth of experience of defining plan representations from both theoretical studies and practical planning. In 1992, under the DARPA/Air Force Research Laboratory (Rome) Planning Initiative (ARPI) [Fowler et. al., 1995], a number of participants created the KRSL plan language [Lehrer, 1993]. Although this has been used for some transfers of information between planning components within the ARPI (in particular an Integrated Feasibility Demonstration called IFD-2 [Burstein et. al., 1995]), it has not had the widespread impact desired. Its structure was too rigid and KRSL excluded much that was already being done within AI planning research. However, it did establish a range of entities which needed to be in a plan representation and was an influence on subsequent work.

In 1994, a group was formed to create an ontology for plans, using new insights gained over the last few years in the knowledge-sharing community in the US [Neches et. al., 1991; Genesereth & Fikes, 1992; Gruber, 1993] and Europe [Uschold, 1998; Breuker & van de Velde, 1994]. This led to an outline plan model called KRSL-Plans [Tate, 1996b]. However, this work was not brought to a conclusion though it did feed into subsequent work.

Since 1995, there have been a number of initiatives to standardise terminology in the subject area of activities and plans. These include enterprise processes in PIF (the Process Interchange Format [Lee et. al., 1996]); workflow (International Workflow Management Coalition [WfMC, 1994]); CASE systems data modelling exchange in CDIF [Ernst, 1997; Navarro, 1996]; manufacturing processes (NIST's Process Specification Language [Schlenoff et. al., 1996]); and the Object Model Working Group's CPR (Core Plan Representation - [Pease & Carrico, 1997]). These initiatives have involved academic, government and industry participants.

In the US military planning research community and beyond, there has been work to use verb/noun phrase grammars to represent plan objectives and activities [Valente et al., 1996; Hess, 1996; Kingston et. al., 1997; Drabble et. al., 1997].

In August 1997, DARPA and the Air Force Research Laboratory (Rome) Programme Managers for ARPI proposed a renewed effort to tap into this accumulated expertise, and to create a shared plan representation suitable for practical use in ARPI and on applied research programmes in their communities. The representation is expected to be considerably more detailed than the more conceptual ontology efforts which have gone before it.

SPAR is drawing on this wide range of previous work.

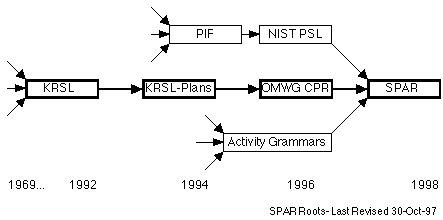

SPAR Roots

Plan ontologies and representations created by participants of ARPI-related projects include:

  1. ARPI KRSL 2.0.2 [Lehrer, 1993] as noted above.
  2. ARPI KRSL-Plans ontology [Tate, 1996b] as noted above.
  3. SRI International ACT language from the Cypress project [Wilkins & Myers, 1995] and SIPE's domain description language [Wilkins, 1988].
  4. Edinburgh O-Plan Task Formalism [Tate et. al., 1994; Tate, 1995] and the related <I-N-OVA> constraint model of activity [Tate, 1994; Tate, 1996a].
  5. CMU OZONE scheduling ontology [Smith & Becker, 1997].
  6. CMU Prodigy [Carbonell et. al., 1992] work on decisions made in planning.
  7. ISTI IDEON™ Object-Oriented Enterprise Ontology [Madni & Mi, 1997].
  8. The Planning Domain Definition Language (PDDL) [McDermott et. al., 1997] created by a community of researchers wanting to exchange planning challenge problems. PDDL draws on work on expressive planner operator languages in ADL [Pednault, 1989] and hierarchical task network planning [Erol et. al., 1994].
  9. Process Interchange Format (PIF) standard being worked on by a number of projects interested in exchanging process information [Lee et. al., 1996].
  10. USC/ISI work on EXPECT regarding the representation of goals and tasks [Swartout and Gil, 1995], its recent application to structured representations of air campaign objectives [Valente et al., 1996] as well as USC/ISI work on the SENSUS ontology and lexicon [Knight & Luk, 1994].
  11. Edinburgh and ISX Corporation work on process models and grammars for describing the actions and products flowing for US Air Campaign Planning [Kingston et. al., 1997].
SPAR has drawn on the ontologies created on collaborative projects related to Enterprise Modelling and Integration including:
  1. Enterprise Ontology (Edinburgh, Lloyds Register, Logica, IBM UK and Unilever) [Fraser & Tate, 1995; Uschold et. al., 1998] and the report of the Enterprise Project workshop on "Content, Form and Methods for Ontologies" in May 1994 [Moralee, 1994]. that were provided to the KRSL-Plans, PIF and other communities.
  2. TOronto Virtual Enterprise (TOVE) ontology [Fox et. al., 1993].
In addition, there is relevant work on Structured Analysis and Design Techniques (e.g., SADT [Marca & McGowan, 1988]), Issue-Based Design Methods (e.g., IBIS [Conklin & Burgess-Yakamovic, 1995]), Process Management Models and Methods (e.g., IDEF [NIST, 1993]), Entity-Relationship Modelling [Chen, 1976], Object-Role Modelling (e.g., Nijssen's Information Analysis Method (NIAM) [Nijssen, 1989]), Process Workflow Support, etc.

Since 1994, work within ARPI on plan representations has proceeded in parallel with pre-standards work on process interchange and representation. ARPI researchers have been involved in these activities, and others have supported the continuing ARPI work - including helping in the development and review of SPAR. The relevant standards activities that have been jointly pursued are:

  1. Object Model Working Group (OMWG) Core Plan Representation (CPR) [Pease & Carrico, 1997].
  2. National Institute of Standards and Technology (NIST) Process Specification Language (PSL) [Schlenoff et. al., 1996].
  3. Workflow Management Coalition work in standardising workflow systems and process terminology via their Glossary of Workflow terms [WfMC, 1994] and their interface 1 - the Workflow Process Definition Language (WPDL).
  4. CASE Data Interchange Format (CDIF [Ernst, 1997]) group of the Electrical Industries Association who are standardising data model exchanges between CASE systems in a number of areas including the Project Management, Planning and Scheduling Subject Area [Navarro, 1996].

A common model of processes and activity has emerged from this work and has been used as the basis for the initial version of SPAR.

Development, Refinement and Review Process

SPAR is being developed in the following way:
  1. The SPAR Core Group has merged existing plan ontology work into a solid core representation as a starting point.
  2. Via three panels, the Core Group is seeking input to the SPAR work, reviews of the representation proposed, and issues raised by it. The panels are:
  3. The Core Group will take the lessons learned in 2 to refine 1, and repeat the process.
  4. The Core Group and others will communicate the work in progress and then promote the availability of the representation to the potential user, technical and standards communities.
  5. The research community will collect experience in the use of SPAR and use lessons learned to refine the representation.
  6. The research community will publish a report on the representation and experience gained.

SPAR Model

A set of statements called the KRSL-Plans description (version dated 20-Sep-96) was used as a starting point for the SPAR model of planning and activity. These were created by the Plan Ontology Construction Group within ARPI. These statements were a refinement of an earlier version dated 2-Feb-95 (published in [Tate, 1996b]). The later version of these statements was also used to provide ARPI participants input to the development of OMWG's Core Plan Representation (CPR). [square brackets are used to indicate phases or options that were not fully agreed]. The top level statements are:
  1. A PLAN is a SPECIFICATION of ACTIVITY to meet one or more OBJECTIVES.
  2. A SPECIFICATION of ACTIVITY denotes or describes one or more ACTIVITIES.
  3. An ACTIVITY may change the STATES-OF-AFFAIRS.
  4. STATES-OF-AFFAIRS is something that can be evaluated as holding or not. [They can refer to an individual world state (such as NOW), or may refer to world histories, changes between world states, etc.]
  5. An AGENT can perform ACTIVITIES and/or hold OBJECTIVES.
  6. An OBJECTIVE may have one or more EVALUATION-CRITERIA.

    Then at a second level of detail, the statements are:

  7. An EVALUATION-CRITERIA is an ASPECT of [past, present or possible future] STATES-OF-AFFAIRS or an ASPECT of [one or more] PLANS.
  8. An EVALUATION is a predicate (holds/does not hold) or a preference ranking on [one or more] EVALUATION-CRITERIA.
  9. An ACTIVITY takes place over a TIME-INTERVAL identified by its two ends, the BEGIN-TIME-POINT and the END-TIME-POINT. The BEGIN-TIME-POINT is temporally before the END-TIME-POINT.
  10. An ACTIVITY-SPECIFICATION may have CONSTRAINTS associated with it [and its TIME-INTERVAL].
  11. An ACTIVITY-SPECIFICATION may be decomposed into one or more ACTIVITY-DECOMPOSITIONS.
  12. ACTIVITY-DECOMPOSITION: The specification of how an ACTIVITY is decomposed into one or more SUB-ACTIVITIES; this may include the specification of constraints on and between the SUB-ACTIVITIES [and their TIME-INTERVALs].
  13. SUB-ACTIVITY: Sub-activities are the constituent activities designated in any ACTIVITY-DECOMPOSITION.
  14. PRIMITIVE-ACTIVITY is an ACTIVITY with no (further) ACTIVITY-DECOMPOSITION.
  15. CONSTRAINTS can be stated with respect to none, one or more than one time point. They express things which are required to hold. They are evaluable with respect to a specific PLAN as holding or not holding. Such constraints may refer to world statements (conditions and effects), resource requirements and usage, authority requirements or provision, etc.

The model is expected to develop from this base.

Status

A project has been started within the ARPI community to develop a Shared Planning and Activity Representation - SPAR - for practical use in technology and applications projects within US government research and development communities and beyond.

An initial version of SPAR has been produced utilising the wide range of previous work on plan, process and activity ontologies and representations. This is being subjected to review and refinement through a number of Request For Comment documents involving technical specialists and application-oriented user panels. Following these reviews, the intention is to publish a first version in mid 1998 and then to collect experience in the application of the representation.

It is intended that a process for sharing experiences of using SPAR will be established and continuing design issues tracked. A collected volume of papers describing SPAR and relating experience in using, adapting or extending the representation is planned in the medium term.

Acknowledgements

This work is sponsored by the Defense Advanced Research Projects Agency (DARPA) and the Air Force Research Laboratory (Rome), Air Force Materiel Command, USAF, under grant numbers F30602-95-1-0022 and F30602-97-C-0275. The US Government is authorised to reproduce and distribute reprints for Governmental purposes notwithstanding any copyright annotation hereon. The views and conclusions contained herein are those of the authors and should not be interpreted as necessarily representing official policies or endorsements, either express or implied, of DARPA, AFRL, the US Government, members of the SPAR Core Group or other SPAR participants.

Thanks to the many people who have provided input to the planning, process and activity ontologies which have provided the roots for the work on SPAR and enabled rapid progress to be made in its initial development. Special thanks to Steve Polyak for helping to complete the extensive set of references in this paper. Thanks to Paul Krause, Simon Parsons, Steve Polyak and Mike Uschold for reviewing the text.

References

Allen, J.F., 1984. "Towards a General Theory of Action and Time" Artificial Intelligence 23 123-154.

Allen, J.F., Hendler, J. and Tate, A. (eds.), 1990. Readings in Planning Morgan Kaufmann, Palo Alto, CA.

Blyth A.J.C., Chudge, J., Dobson, J.E. and Strens, M.R., 1993. "ORDIT: A new methodology to assist in the process of eliciting and modelling organisational requirements" In Proceedings on the Conference on Organisational Computing Systems, November, San Jose, CA, USA. http://www.twente.research.ec.org/esp-syn/text/2301.html

Breuker, J., van de Velde, W., 1994. The CommonKADS Library for Expertise Modelling: Reusable Components for Artificial Problem Solving, IOS Press. http://www.swi.psy.uva.nl/projects/CommonKADS/home.html.

Brill, D., 1993. "LOOM Reference Manual v.2.0", Information Sciences Institute, University of Southern California. http://www.isi.edu/isd/LOOM/LOOM-HOME.html

Burstein, M.H., Schantz, R., Bienkowski, M.A., desJardins, M.E. and Smith, S.F., 1995. "The Common Prototyping Environment -- A Framework for Software Technology Integration, Evaluation and Transition" IEEE Expert 10(1) February 17-26, IEEE Comp. Soc. http://arpi.isx.com

Carbonell, J.G., Blythe, J., Etzioni, O., Gil, Y., Joseph, R., Kahn, D., Knoblock, C., Minton, S., Perez, A., Reilly, S., Veloso, M., and Wang, X., 1992. "PRODIGY4.0: The Manual and Tutorial", Technical Report CMU-CS-92-150, Department of Computer Science, Carnegie Mellon University.

Chen, P.P., 1976. "The Entity-Relationship Model - Toward a Unified View of Data" ACM Transactions on Database Systems 1(1) March 9-36.

Conklin, J. and Burgess-Yakamovic, K., 1995. "A Process-Oriented Approach to Design Rationale" In T. Moran and J. Carroll (eds.) Design Rationale Concepts, Techniques, and Use, Lawrence Erlbaum Associates, Mahwah, N.J., pp. 393-428.

Drabble, B., Lydiard, T. and Tate, A., 1997. "Process Steps, Process Products and System Capabilities", Artificial Intelligence Applications Institute, University of Edinburgh, Technical Report ISAT-AIAI/TR/4 Version 2, April 14, 1997. http://www.aiai.ed.ac.uk/~arpi/ACP-MODELS/ACP-PROCESS/97-APR/TEX-PS/isat-report4.pdf

Ernst, J., 1997. Introduction to CDIF, CASE Data Interchange Format Division Electronic Industries Association. http://www.cdif.org

Erol, K., Hendler, J. and Nau, D., 1994. "UMCP: A Sound and Complete Procedure for Hierarchical Task Network Planning" In Proceedings of the Second International Conference on AI Planning Systems (AIPS-94), Chicago, IL, USA, pp. 249-254.

EXPRESS Information Modelling Language, 1995. ISO WD 10303-11. http://www.eurpc2.demon.co.uk/part11.html

Fikes, R.E. and Nilsson, N., 1971. "STRIPS: A New Approach to the Application of Theorem Proving to Problem Solving" Artificial Intelligence 5(2).

Fowler, N., Cross, S.E. and Owens, C., 1995. "The ARPA-Rome Knowledge-Based Planning and Scheduling Initiative" IEEE Expert, 10(1) February 4-9, IEEE Comp. Soc. http://arpi.isx.com

Fraser, J. and Tate, A., 1995. "The Enterprise Tool Set -- An Open Enterprise Architecture" In Proceedings of the Workshop on Intelligent Manufacturing Systems, International Joint Conference on Artificial Intelligence (IJCAI-95), Montreal, Canada. http://www.aiai.ed.ac.uk/~entprise/enterprise/ontology.html

Fox, M.S., Chionglo, J.F. and Fadel, F.G., 1993. "A Common-Sense Model of the Enterprise" In Proceedings of the Second Industrial Engineers Research Conference (IERC) Norcross, GA, Institute for Industrial Engineers. http://www.ie.utoronto.ca/EIL/tove/toveont.html

Genesereth, M.R. and Fikes, R.E., 1992. "Knowledge Interchange Format, Version 3.0 Reference Manual", Knowledge Systems Laboratory, KSL-92-86. http://ksl-web.stanford.edu/KSL_Abstracts/KSL-92-86.html.

Green, C., 1969. "Applications of Theorem Proving to Problem Solving" In Proceedings of the First International Joint Conference on Artificial Intelligence (IJCAI-69), Morgan Kaufmann, pp. 741-747.

Gruber, T., 1993. "Ontolingua: A Translation Approach to Providing Portable Ontology Specifications" Knowledge Acquisition 5(2) 199-200. http://ksl-web.stanford.edu/KSL_Abstracts/KSL-92-71.html.

Hess, D. (editor), 1996, Theater Battle Management Command, Control, Communications, Computer and Intelligence Architecture (TBM C4I) Air Operations Center (AOC), Report prepared by Government Personnel and Mitre Corporation under Contract for Project 6970.

ISO, 1995. "Product Data Representation and Exchange: Part 49: Integrated Generic Resources: Process Structure and Properties", ISO Standard 10303-49, International Standards Organization. http://www.nist.gov/sc4/www/stepdocs.htm

Joslin, D., 1996. "Planner/Scheduler Interface Proposal", Draft, CIRL, University of Oregon, 17-May-96. http://www.cirl.uoregon.edu/joslin/Papers/psi.ps.

Khambhampati, S, 1997. "Refinement Planning" AI Magazine, 18(2), pp. 67-97, Summer 1997.

Kingston, J.K., Griffiths, A. and Lydiard, T.J., 1997. "Multi-Perspective Modelling of the Air Campaign Planning Process" In Proceedings of the Fifteenth International Joint Conference on Artificial Intelligence (IJCAI-97), Nagoya, Japan. http://www.aiai.ed.ac.uk/~arpi

Knight, K. and S. Luk., 1994. "Building a Large Knowledge Base for Machine Translation". In Proceedings of the American Association of Artificial Intelligence Conference (AAAI-94), July 31, August 3, 1994, Seattle, WA. http://www.isi.edu/natural-language/resources/sensus.html#pubs

Lee, J. and Malone, T., 1990. "Partially Shared Views: A Scheme for Communicating between Groups Using Different Type Hierarchies" ACM Transactions on Information Systems 8(1) 1-26.

Lee, J. (ed.), Gruninger, M., Jin, Y., Malone, T., Tate, A., Yost. G., and other members of the PIF Working Group, 1996. "Process Interchange Format and Framework, Version 1.1", MIT Center for Coordination Science, Working Paper No. 194. http://ccs.mit.edu/pif

Lehrer, N. (ed.), 1993. "ARPI KRSL Reference Manual 2.0.2", ISX Corporation. http://isx.com/pub/ARPI/ARPI-pub/krsl/krsl-info.html

McCarthy, J. and Hayes, P.J., 1969. "Some Philosophical Problems from the Standpoint of Artificial Intelligence" In B. Meltzer and D. Michie (eds.) Machine Intelligence 4, Edinburgh University Press, 463-502.

McDermott, D., 1997. "PDDL - The Plan Domain Definition Language", Computer Science, Yale University. http://www.cs.yale.edu/HTML/YALE/CS/HyPlans/mcdermott.html

Moralee, S., 1994. "Notes from Enterprise Project Workshop on Content, Form and Methods for Ontologies", IBM(UK) Offices, Nottingham, UK, Dated 25-Nov-94. http://www.aiai.ed.ac.uk/~bat/ontology-may94.html.

Navarro, T., 1996. "CDIF - Integrated Meta-model - Project Management Planning and Scheduling Subject Area", Report EIA-PN3239, CDIF-DRAFT-PMPS-V04, CASE Data Interchange Format Division, Electronic Industries Association. http://www.cdif.org/overview/ProjectManagement.html

Neches, R., Fikes, R., Finin, T., Gruber, T.R., Patil, R., Senator, T. and Swartout, W.R., 1991. "Enabling Technology for Knowledge Sharing" AI Magazine 12(3) 36-56. http://ksl-web.stanford.edu/KSL_Abstracts/KSL-93-23.html.

Nijssen, G.M. and Halpin, T.A., 1989. Conceptual Schema and Relational Database Design: A Fact-Based Approach, Prentice Hall.

NIST, 1993. "Integrated Definition for Function Modeling (IDEF0)", Federal Information Processing Standards (FIPS) Publication 183, National Institute of Standards and Technology, December 21, 1993. http://www.idef.com

Pease, R.A. and Carrico, T.M., 1997. "Object Model Working Group (OMWG) Core Plan Representation - Request for Comment", version 2, 24 January 1997, Defense Advanced Research Projects Agency. http://www.teknowledge.com/CPR2/

Pednault, E, 1989. "ADL: Exploring the Middle Ground between STRIPS and the Situation Calculus" In Proceedings of the First International Conference on the Principles of Knowledge Representation and Reasoning, pp. 324-332.

Polyak, S. and Tate, A., 1998. "Rationale in Planning: Causality, Dependencies and Decisions" Knowledge Engineering Review, To appear, Cambridge University Press.

Schlenoff, C. (ed.), Knutilla, A., and Ray, S., 1996. "Unified Process Specification Language: Functional Requirements for Modeling Processes", National Institute of Standards and Technology, Gaithersburg, Maryland. http://www.nist.gov/psl/

Madni, A. and Mi, P., 1997. "IDEON™ Specification in CORBA IDL", Technical Memo ISTI-TM-7/97, July 17, 1997, Intelligent Systems Technology, Inc., Santa Monica, CA. http://www.intelsystech.com

Marca, D.A. and McGowan C.L., 1988. SADT: Structured Analysis and Design Techniques, McGraw-Hill, New York.

Schreiber, G., Weilinga, B., Akkermans, H. and Van de Velde, W., 1994. "CML: The CommonKADS Conceptual Modelling Language" In L. Steels, G. Schreiber and W. Van de Velde (eds.) A future for knowledge acquisition: Proceedings of EKAW-94, Hoegaarden, Belgium, Springer-Verlag. http://www.swi.psy.uva.nl/projects/Kactus/toolkit/cml.html

Smith, S.F. and Becker, M., 1997. "An Ontology for Constructing Scheduling Systems" In Working Notes from 1997 AAAI Spring Symposium on Ontological Engineering, Stanford, CA, AAAI Press. http://www.cs.cmu.edu/afs/cs/project/ozone/www/AAAI_Symp_On_Ontol_97/abstract.html

Sowa, J.F., 1984. Conceptual Structures: Information Processing In Mind and Machine, Reading, MA., Addison-Wesley.

Swartout, B. and Gil, Y., 1995. "EXPECT: Explicit Representations for Flexible Acquisition" In Proceedings of the Ninth Knowledge Acquisition for Knowledge-Based Systems Workshop, February 26-March 3, 1995. http://www.isi.edu/expect/expect-homepage.html

Tate, A., 1994. "A Plan Ontology - a Working Document - October 31, 1994" In Proceedings of the Workshop on Ontology Development and Use, 2nd - 4th November, La Jolle, CA. ftp://ftp.aiai.ed.ac.uk/pub/documents/1994/94-ont-plan-ontology.pdf

Tate, A., 1995. "O-Plan Task Formalism Manual", Version 2.3, July 12, 1995. Artificial Intelligence Applications Institute, University of Edinburgh. http://www.aiai.ed.ac.uk/project/ftp/pub/documents/ANY/oplan-tf-manual.pdf

Tate, A., 1996a. "Representing Plans as a Set of Constraints -- the <I-N-OVA> Model" In Proceedings of the Third International Conference on Planning Systems (AIPS-96), Edinburgh, Scotland, May 1996, AAAI Press, pp. 221-228. http://www.aiai.ed.ac.uk/~oplan/inova.html

Tate, A. (ed.), 1996b. "KRSL-Plans", Appendix of Tate, A, "Towards a Plan Ontology" AI*IA Notizie (Quarterly Publication of the Associazione Italiana per l'Intelligenza Artificiale), Special Issue on "Aspects of Planning Research" 9(1), pp. 19-26. A shorter version of [Tate, 1994]. http://www.aiai.ed.ac.uk/project/ftp/pub/documents/1996/96-aiia-plan-ontology.pdf

Tate, A (reporter) and the PIF Working Group, 1996. "PIF and the Workflow Management Coalition WPDL, Report of Session at the PIF Workshop", Stanford University, 11-Jul-96. http://ccs.mit.edu/pif

Tate, A., Drabble, B. and Kirby, R.B., 1994. "O-Plan2: an Open Architecture for Command, Planning and Control" In M. Fox and M. Zweben (eds.) Intelligent Scheduling, Morgan Kaufmann. http://www.aiai.ed.ac.uk/~oplan/

Tate, A., Hendler, J. and Drummond, M., 1990. A Review of AI Planning Techniques, In J. Allen, J. Hendler and A. Tate (eds.) Readings in Planning Morgan Kaufmann, pp. 26-49.

Uschold, M.F. and Tate, A., 1998. "Putting Ontologies to Use" Knowledge Engineering Review, Special Issue on Ontologies, To appear, Cambridge University Press.

Uschold, M.F., 1998. "Concepts and Terminology for Knowledge Sharing" Knowledge Engineering Review, Special Issue on Ontologies, To appear, Cambridge University Press. http://www.aiai.ed.ac.uk/~euroknow

Uschold, M.F., Moralee, S., King, M. and Ziorgios, Y., 1998. "The Enterprise Ontology" Knowledge Engineering Review, Special Issue on Ontologies, To appear, Cambridge University Press. http://www.aiai.ed.ac.uk/~entprise/enterprise/ontology.html

Valente, A., Swartout, W. R. and Gil, Y., 1996. "A Representation and Library for Objectives in Air Campaign Plans". http://www.isi.edu/expect/inspect.html

Wilkins, D.E., 1988. Practical Planning Morgan Kaufmann.http://www.ai.sri.com/~sipe

Wilkins, D.E. and Myers, K.L., 1995. "A Common Knowledge Representation for Plan Generation and Reactive Execution" Journal of Logic and Computation 5(6) 731-761. http://www.ai.sri.com/~act/act-formalism.html

World Wide Web Consortium, RDF Metadata Format, Draft 3-Oct-97. http://www.w3.org/Press/RDF

Workflow Management Coalition, 1994. "Workflow Management Coalition Glossary", A Workflow Management Coalition Specification, November. http://www.wfmc.org
