Multi-Perspective Models of the Air Campaign Planning Process

John Kingston and Terri Lydiard, AIAI, University of Edinburgh


Last Revision: 14 March 1996

Caveat Emptor comments added: 9 October 1996

Important: This is an intermediate document; the final version can be found here. This document is kept available only because it contains more detail on some subjects than the final document. Readers should read the information under "Caveat Emptor" below.

Section
Introduction to Air Campaign Planning
Plan Components
Preparation for planning
Planning
Introduction to the modelling technique used
Organizational Model of the ACP process
Introduction
Process Perspective
Structure Perspective
States of Affairs
Assets Perspective
Rights Perspective
Responsibilities Perspective
Task model
Task Model: Prepare for Air Campaign Planning

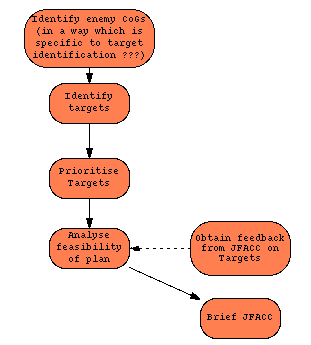

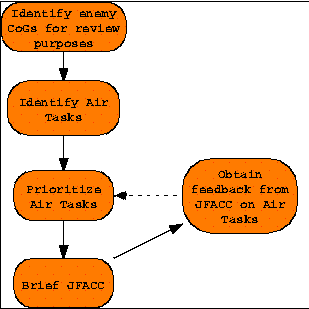

Task Model: Plan Air Campaign

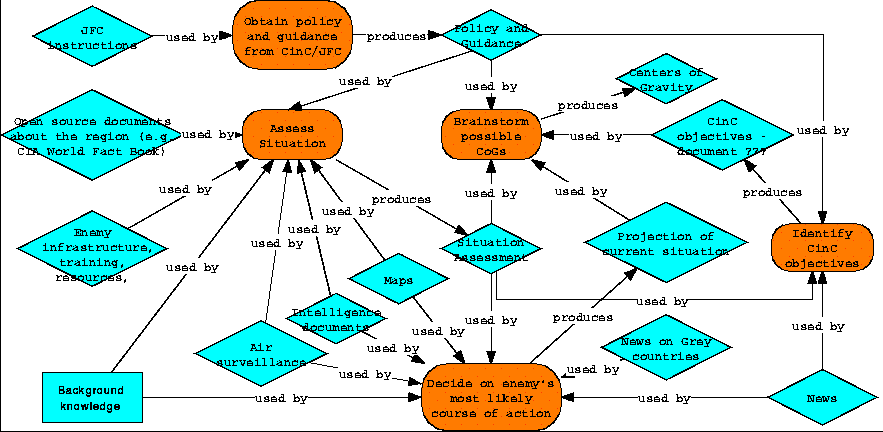

Task Model: Prepare for Air Campaign Planning: Assets Perspective

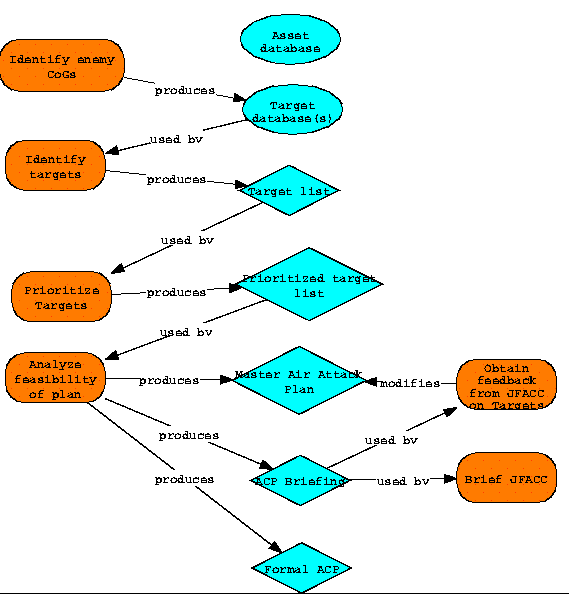

Task Model: Plan Air Campaign: Assets Perspective
Communication Model
Expertise Model
Identifying and Prioritizing Air Objectives
 Task Knowledge

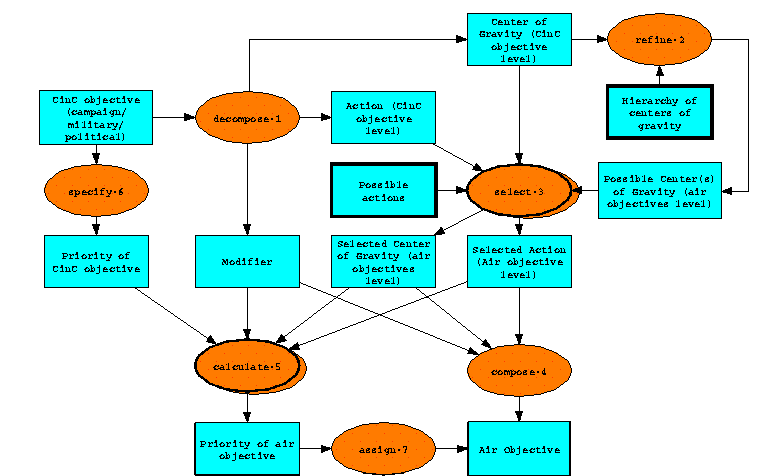

 Inference Knowledge
 Domain Knowledge
Prioritizing Air Tasks
 Task Knowledge
 Inference knowledge
 Domain Knowledge
Prioritizing Targets
 Task Knowledge
 Inference knowledge
 Domain Knowledge
Knowledge acquisition using repertory grids
Repertory Grids
 Criteria used to fill in the grid
 Results
 Repertory grids: expertise model level
 Statistical analysis of repertory grids
 Full set of acquired repertory grids
The IDEF3 modelling technique
Domain knowledge for Air Campaign Planning
List of objectives
CinC objectives
 Key Production
 National Infrastructure
 National Population
 Fielded Forces
Air Objectives
 Leadership
 Key Production
 National Infrastructure
 Fielded Forces
Air Tasks
 Leadership
 Key Production
 National Infrastructure
 National Population
 Fielded Forces

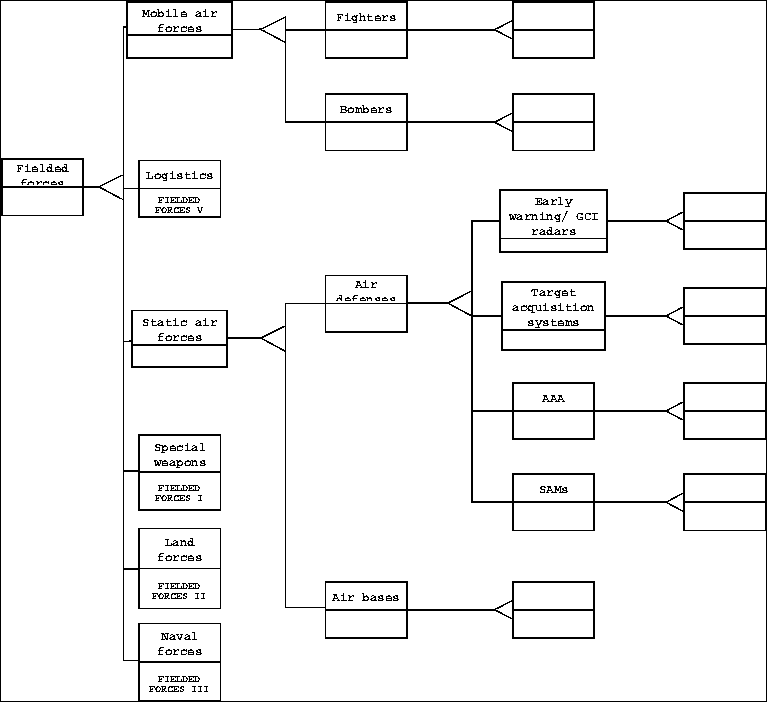

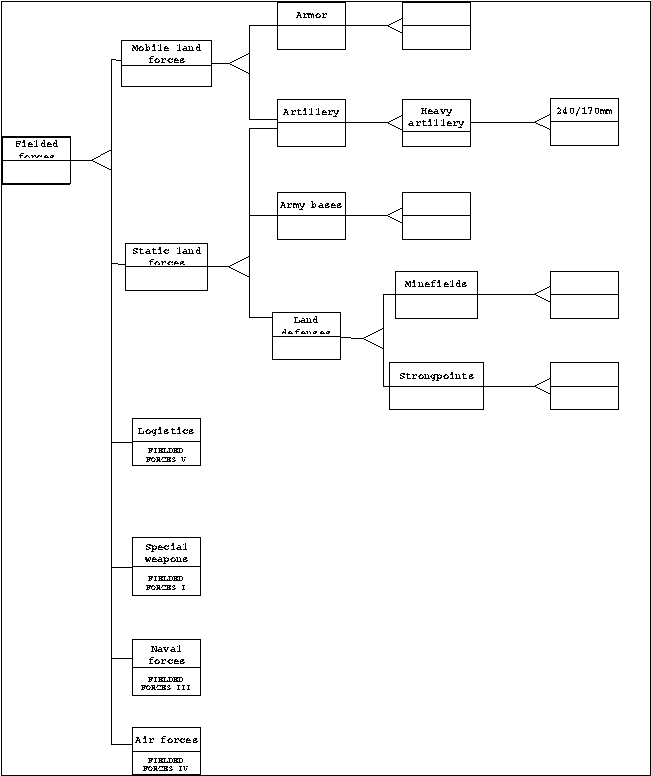

Centers of Gravity
Observations
Actions
Modifiers
Observations
The CommonKADS methodology
Organizational Model
 Enriching the CommonKADS Organizational Model for the ACP
domain
Task model
Agent Model
Communication Model
Expertise Model
 Expertise Model: Domain Level
 Expertise Model: Inference Knowledge
 Expertise Model: Task Level
Design Model


This document contains models of the Air Campaign Planning process, represented as diagrams and accompanying text. The purpose of these models is:

These diagrams are based on knowledge acquired from two staff members from ISX who were formerly part of the USAF, four members of Checkmate, [1] and documents provided by these domain experts.

[1] Checkmate is a group of expert air planners at the Air Force Headquarters in the Pentagon, who may play a role in a JTF by augmenting the JFACC planning group or by working separately from the JFACC planning group. Checkmate was originally a war gaming center for evaluation of plans with a focus on high level strategy; for example, Checkmate modeled WWIII in Europe so that logistics, purchasing and training could be planned in the event that a crisis occurred. However, the senior Air Force officers often use Checkmate to supplement their planning staff. As a result, Checkmate personnel have real world planning experience even though it is not in the group's original charter.

A full description of the Air Campaign Planning process requires analysis on two levels:

This document concentrates on a description of the the process of creating an air campaign plan, using a multi-perspective approach based on the CommonKADS methodology Breuker94. However, the Expertise Model, which is a key component of the CommonKADS methodology, is designed to represent both a (specific) process and the domain knowledge which it manipulates; in other words, to model both activities and objectives. An analysis of objectives was performed in order to support this model; some results can be seen in Appendix Centers of Gravity.

Caveat Emptor

The document was created as an intermediate step towards a final document. Checkmate have criticised a number of points in this document, and an updated and validated version of the document has been prepared. General criticisms are listed below; specific criticisms of the first 20 pages (which were the only ones thoroughly reviewed) are given as footnotes to those pages.

The purpose of continuing to make this document available is that, in some areas, it provides more detail than the validated version.

General Criticisms:

Introduction to Air Campaign Planning

The knowledge acquisition effort which is described in this document focused on air campaign planning within a Joint Task Force (JTF). A JTF exists for one crisis (which usually implies one theater); however, there may be more than one JTF per theater. The JTF is under the control of the Joint Forces Commander (JFC).

The Joint Forces Air Component Commander (JFACC) is the functional commander responsible for the air operations within the overall campaign. The JFACC is appointed by the JFC, who usually selects the component commander contributing the greatest number of air assets to the JTF. The work of the JFACC and his staff is carried out in the Joint Air Operations Center (AOC).The JFACC reports to the JFC, who reports to the Commander in Chief (CinC) of the theater.

Checkmate: These two paragraphs are trying to say too much too quickly. Plus, what is being stated is inaccurate.

A JFACC is not required. 3-56.1 needs to be referenced for accurate information.

Plan Components

A Campaign Plan is a plan for all forces participating in a JTF and typically covers a 6 month period. Each functional component within the JTF will also have a specific campaign plan. The Air Campaign Plan also covers a 6 month period. The overall plan is represented and transformed into a Master Air Attack Plan (MAAP), from which the Air Tasking Order (ATO), or battle plan, is produced. The ATO takes 36 hours to produce and covers 24 hours. Mission Plans are derived from the ATO; a mission plan constitutes the directions for a specific sortie. Pilots then develop an Engagement Plan, which specifies the maneuvers that will be used to execute the mission plan.

Checkmate: In the first paragraph, several steps are missing between the crisis and establishing a JTF. In the third paragraph, negotiating does not occur. It is more of a feedback loop. The terms engagement plan and mission plan do not exist.

Preparation for planning

Once a crisis occurs, the CinC assesses the situation, selects a Course of Action and may decide to establish a JTF. Then a warning order is given, normally 3 days in advance of the commencement of operations. Operations are initiated by a further order from the CinC, known as the Operations Order.

When a crisis occurs and the CinC decides to take some action, the CinC will provide planning guidance to the JFC. The guidance is communicated to the component commanders (e.g. the JFACC) through the JFC. The component commanders will in turn communicate the guidance to their planners. Based on the guidance, the planning staff will take between 3 days and 1 week to build a plan that may be executed.

Although the guidance (at every level) is considered to be an order rather than a suggestion, negotiation does take place. If a commanding officer proposes certain objectives or goals that are unreasonable, then participants in the planning process have the responsibility for convincing the commanding officer to take a different approach. For example, the planners may want more time. But, to buy time in a crisis, something diplomatic has to be given up. The commanding officer may not be willing to make a diplomatic sacrifice. In some such situations, the commanding officer will enforce the initial guidance; in other cases, the initial guidance may be relaxed. However the Rules of Engagement (which are part of the initial guidance from the CinC) are never negotiable.

Initial planning steps include assessing the situation and organizing the planning staff. Assessing the situation involves identifying enemy centers of gravity (COGs) [2] and air defenses as well as determining a strategy and defining high level objectives. A lot of knowledge about the theater is needed; typically the planning staff has been studying the theater for years. The types of information they know are whether the enemy has nuclear weapons, the nature of the crisis, and the history of the conflict. The planning staff have, and use, many maps with different perspectives of the theater.

[2] COGs are described in more detail in section Centers of Gravity.

When the planners cannot find required details, they will rely on contacts with people who have the information or can get the information. Typically these are intelligence people on the planning team. It's often impossible to prove the accuracy of intelligence data, because INTEL (the intelligence group) must protect their sources; however, duplication of INTEL effort between different branches, which is encouraged, may corroborate information or provide additional information. If the planners cannot obtain the required information in time (it can take 3 days for information to arrive), they will make assumptions and move to the next step.

Checkmate: ROEs are negotiable and are changed throughout the execution of the plan. The critiques of INTEL should not be included. In general, the coverage of INTEL is nonexistent. Future models should cover that aspect of planning.

Planning

Throughout the planning process, air planners are searching for alternatives, vulnerabilities, consequences and contingencies. The heart of the planning process consists of three stages:

The planning may be subdivided according to different phases of the conflict, or possibly on other dimensions (e.g. geographical area).

[3] The terms ``task objective'' or ``Course of Action'' may be used by some to refer to air tasks

The planning team usually consists of 8 people working 8-hour shifts (12 hours in a crisis), which is only sufficient to plan for one situation (the most likely case) and look very hard at one other alternative (probably the worst case). The planning staff hold 4-hourly meetings to discuss progress, obtain a consensus of opinion, and to make sure that there is a smooth transition between phases. The latter is very important, since it is imperative that friendly forces are not perceived by the enemy as being indecisive.

It's important to note that the planning process does not always continue until each stage is fully completed. Often, the planning staff may only be 75% finished with some activities when it is time to move on to the next stage. This is usually due to resource constraints (insufficient staff to perform more detailed analysis), although there is also a temporal constraint; the dynamic environment in which planning takes place means that the situation may have changed by the time thorough planning is completed.

In most cases, the JFACC will not want to be involved in the planning process except for a daily briefing to make sure that guidance has been communicated correctly. This lack of involvement from the JFACC is deliberate and is designed to foster openness and innovation. The air planning team does not normally communicate with other branches either, in order to enhance creativity, and to reduce the constraints of reconciling too many points of view

Checkmate: This section is completely wrong. The three stages of planning are not what is listed. The heart of planning is transforming the CINC guidance and intent into strategy. Objectives are a tool to distill strategy into something executable. The 2nd last paragraph is wrong. The last paragraph is wrong; the JFACC will lead the process.

Introduction to the modelling technique used

The modelling technique used to model the ACP process was based on the CommonKADS methodology for knowledge modelling. CommonKADS Wielinga92c Breuker94 is a collection of structured methods for building knowledge based systems, analogous to methods such as SSADM for software engineering. It was developed between 1983 and 1994 with funds from the European Community's ESPRIT program. CommonKADS views the development of a knowledge based system as a modelling activity, and so the heart of the method is the construction of a number of models which represent different views on problem solving behavior. Knowledge engineers are encouraged to construct some or all of the following models:

Each of these models consists of one or more diagrams, showing different perspectives on the knowledge contained within that model. For example, one perspective might model the activities which take place in an organization, while a different perspective may represent the structure of that organization. Each perspective therefore represents all acquired knowledge of a particular type. The strength of this ``individual perspective'' approach appears when the knowledge engineer tries to make the knowledge contained in the different perspectives consistent; the presence of certain knowledge or data in one perspective frequently highlights missing knowledge in another perspective.

This document provides CommonKADS models for the Air Campaign Planning process and its surrounding environment. The models which are included are:

Organizational Model of the ACP process

Introduction

The stated aim of modelling the Air Campaign Planning (ACP) process was to perform a ``task analysis'' of the ACP process. However, after initial knowledge acquisition, it was felt that there was considerable benefit to be gained from producing an Organizational Model, showing the organization which surrounds ACP, before analyzing the activities performed during the ACP process in detail. The organizational model contains information on the activities, [4] the agents and the resources which are used in the air campaign planning process, as specified in Figure richmodel; each perspective is represented by a single diagram, or by text.[5]

[4] CommonKADS actually calls these ``functions'' rather than ``activities''; at lower levels of detail, the term ``tasks'' is used instead. However, for reasons which are explained in Uschold95, I have chosen to use the term ``activities'' throughout this document.

[5] This organizational model is a variation of the model proposed by CommonKADS. The reasons for this variation are discussed in appendix CommonKADSAppendix

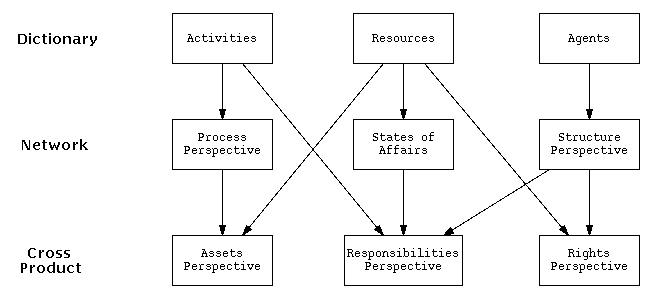

The organizational model also contains ``cross products'' of these three different perspectives (again, see Figure richmodel), which sometimes provide the most useful information. For example, the CommonKADS Organizational Model was used to model a Social Security department; a cross-product of activities and structure was produced which highlighted an area of inefficiency, because one of the activities (archiving) was being performed by three different divisions of the department deHoog93.

Organizational model: perspectives and cross-products

The Dictionary perspectives are simply sets of activities (or agents or resources) which are used as a basis for building the other perspectives. The Network perspectives show how entities of the same type relate to one another:

The Cross Product perspectives show how resources are produced, used, consumed or modified within the process (Assets perspective), what rights agents have to resources (Rights perspective), and the obligations and responsibilities to perform activities and to create states of affairs ( Responsibilities perspective).

Process Perspective

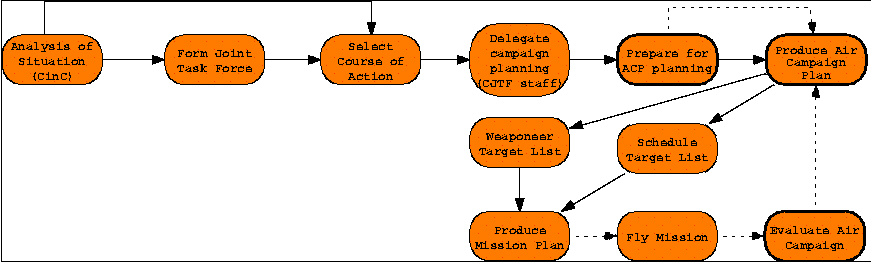

Figure proctop shows the activities which represent the overall workflow of Air Campaign Planning, and also shows how these activities link to form processes.

ACP Process Perspective

Key:

Solid link the first activity precedes the second
Dashed link there is an information flow from the first activity to the second.

Checkmate: Figure 2 is wrong. The process needs to be from doctrine. Some of the steps mentioned in figure 2 do not have to be done during the planning process. There is no such thing as "schedule target list". A JTF MAY be formed. The ACPT and CTEM twist of the model should be removed.

Description of activities:

Analysis of Situation (CinC)

: This is sometimes called ``crisis action planning''. The Commander in Chief analyzes the political and military situation. This usually includes deciding on an approach to the problem; however, this is not the same as what is referred to below as a ``course of action''.

Form Joint Task Force

: A joint task force is formed. This does not always take place, but it is usual. The CinC provides guidance to the new Joint Forces Commander (JFC). The guidance can take several forms including:

All of these types of guidance will change dynamically throughout the planning process as well as the execution of the plan.

Select Course of Action

: The JFC selects a course of action for the US military forces to pursue.

Delegate campaign planning

: The task of campaign planning is delegated to the various Joint Force component commanders (e.g. the JFACC).

Prepare for Air Campaign planning

: The planning team is set up and initial information is acquired or generated. This is described in more detail in the Task and Communication models.

Plan Air Campaign

: The air campaign is planned. This is described in more detail in the Task, Communication and Expertise models.

Schedule Target List

: determine when each target should be attacked. This will depend on both the priority of the target and the availability of suitable aircraft. This is also carried out by the AOC Ops group. The result of this is the Air Tasking Order, which is the document which is passed to the Wings. The Ops group use a software package called CTEMS to help with scheduling. CTEMS takes the prioritized target list and suggests resources to attack these targets; it can constrained either to produce a schedule which can be completed within a particular time, or to produce a schedule which uses only the resources available in theater.

In the course of scheduling the air campaign plan, the Ops group sometimes find and report anomalies in the plan.

Weaponeer Target List

: The weaponeers (part of the AOC Operations group) determine what weapons will be needed to damage or destroy particular targets, and therefore decide which types of aircraft should carry out the mission. This is done by calculating the Desired Mean Point of Impact (DMPI) and required munitions for each target. The DMPI specifies the best weapons for a target, the exact angle the target should be hit and the exact location that the target should be hit.

Weaponeering is currently one of the most time-consuming parts of the whole planning process, taking around 10 hours to complete. The weaponeers use a system known as Rapid Air Action Planner (RAAP) which suggests 5 possible options for resourcing a mission. RAAP can be time-constrained (i.e. forced to plan all missions within a particular time), but it cannot be resource-constrained (forced to plan missions using only certain aircraft). This means that the options suggested by RAAP may conflict with resource allocations explicitly required by senior officers, or resource allocations suggested by the CTEMS system. It has been suggested that the weaponeers could make use of the output of CTEMS as a starting point for weaponeering, but this is currently a subject of internal debate.

Produce Mission Plan

: The Wings and/or the squadron leaders are responsible for planning how their mission(s) should be accomplished at the required time(s).

Fly mission

: Once the aircraft are airborne, responsibility for the mission passes to the flight leaders. If changes to the ATO occur at this stage (e.g. a sudden change in weather), the Ops group at the Air Operations Center will communicate directly with the flight leader.

Evaluate Air Campaign

: Once the mission is completed, the fliers are required to report their results to help in gauging the success of a mission. These results are collated and used as an input to further planning. Other feedback on the current situation is also obtained, including logistics assessment, assessment of readiness, identification of personnel and processing of intelligence reports. Explicitly, it includes obtaining various types of mission reports via Ops and Intel; these reports will include pilot reports, intelligence reports, and a Bomb Damage Assessment (BDA). The planners sometimes go out and obtain information, perhaps by calling an acquaintance in an operating squadron, because the ``official'' intelligence information can be slow in arriving.

The effect of feedback is to adjust the prioritization of task objectives and of targets. If new policy and guidance is received, the prioritization of air objectives may also change.

Checkmate: An Ops group does not exist. The DMPI details are inaccurate. The "weaponeer target list" information can be found in 3-56.1. A JEMS person needs to be consulted on the weaponeering topic. "produce mission plan" should be eliminated. The AOC will never communicate directly with the flight leader. "evaluate air campaign" is wrong.

Structure Perspective

Figures strucfor and strucjf show two different aspects of the organizational structure surrounding the ACP process. Figure strucfor shows the structure of the US armed forces (AFFOR, ARFOR, NAVFOR, MARFOR and SOF) which may be present within a Joint Task Force. Figure strucjf shows the structure of the Joint Forces Command, including the staff who produce the Air Campaign Plan and report to the JFACC, and the upper echelons from whom the JFACC receives instructions.

When viewing these diagrams, it should be borne in mind that different senior officers will choose to work in different ways; to be more precise, the CinC may alter the lines of authority or reporting requirements, in order to improve his liaison with selected groups or individuals. This means that these diagrams, particularly the upper levels of a Joint Forces Command, may be adjusted according to the CinC's own preferences.

Structure of the US military forces

Key:

Dashed link this department or unit is a department of another department or unit.

Partial description:

Wings

give missions to squadrons. There will be 3-4 squadrons in a wing, with 17-24 aircraft each. The personnel in a squadron will be divided into flights; there will be 3-4 flights, typically of 12 pilots each.

N.B. Once a mission is in progress, the term flight is used to apply to a subgroup of aircraft within the mission forces. A ``mission flight'' typically consists of 4 planes, which may be drawn from one or more ``squadron flights''. The Navy avoid this confusion by using the term section for a ``mission flight''.

Structure of a typical Joint Task Force

Checkmate: There are too many concepts in one chart. It seems like there is some structure and some process; and it is inaccurate.

Key:

Solid link the first agent reports to the second
Dashed link the agent belongs to the department

Checkmate: The first two paragraphs are wrong. This type of information should be found in a doctrine document and then referenced. The wings description is inaccurate.

The JTF is different every time. The organization of peacetime and war is different. We need to reference doctrine.

States of Affairs

A State of Affairs indicates that one or more resources have reached a certain status which is important to the ACP process. Since most of the resources used by ACP planning are passive resources (e.g. documents), most of the important states of affairs will correspond to the completion of certain documents.

No states of affairs have yet been fully documented; however, the diagram of the Responsibilities perspective responsibilities below illustrates some possible states of affairs which might emerge as being important.

Assets Perspective

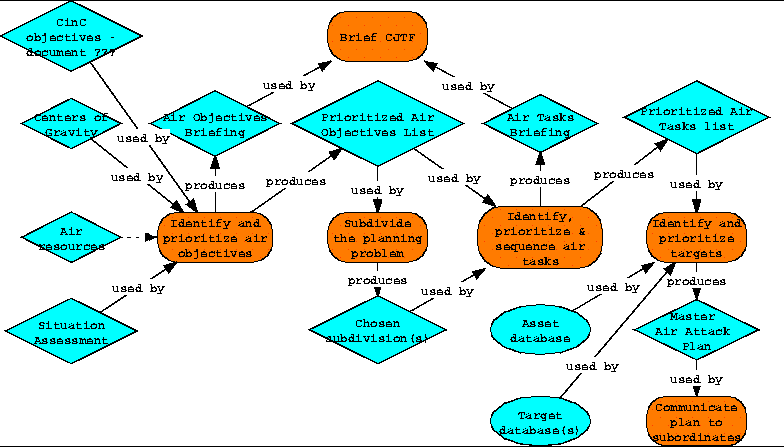

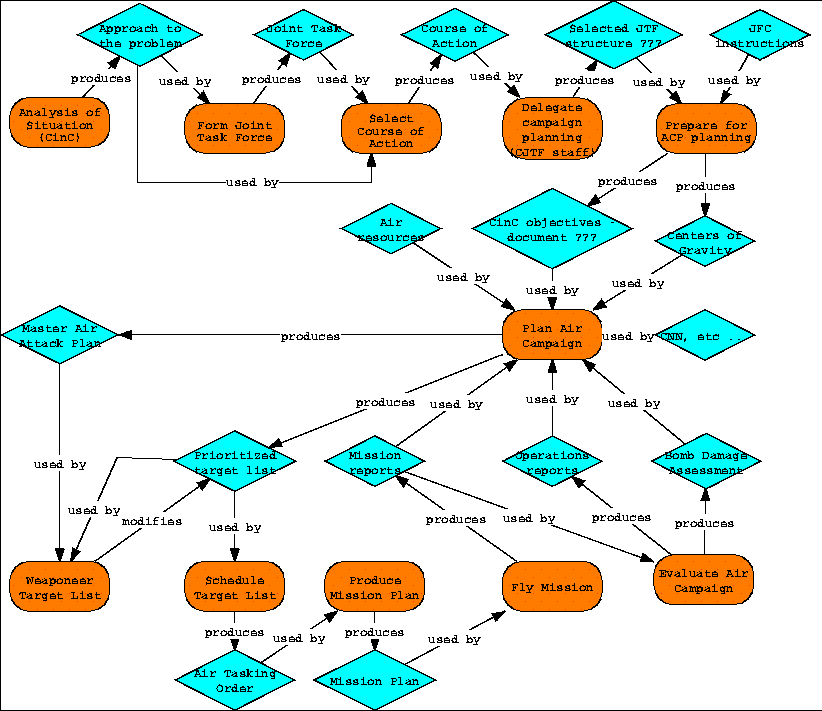

The Assets perspective (see Figure assttop) takes the activities identified in the Process perspective, but instead of showing precedence relationships, it provides information regarding the resources which are produced, consumed, used or modified by the various activities. Three different types of resources are distinguished: passive resources (documents or files); computer resources (computer programs e.g. databases); and human resources (normally implying a source of knowledge).

Figure 11: ACP Assets Perspective: Top Level

Checkmate: Look in the purple book for this information. CNN is not formal input. We should call this open source or non-INTEL. The MAAP is in the wrong place. The diagram is essentially inaccurate.

Rights Perspective

rights

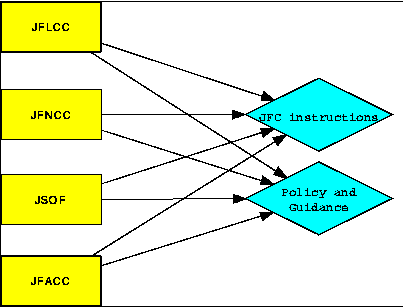

The rights perspective represents the authority of various individuals or groups to view or to alter certain resources. By representing this authority, it becomes possible to frame discussions about the consequences of changing these rights.

An example of the consequences of changing rights can be drawn from Desert Storm [D. Thaler & J. Shlapak, Perspectives on Theater Air Campaign Planning, RAND 1995]. General Schwarzkopf, the CinC, not only briefed all Joint Force Commanders at meetings, he also sometimes gave out guidance or instructions to an individual Joint Force Commander by telephone or in private meetings. One such instruction, given to the JFACC, was not communicated to the land commanders, who were left to wonder why the Air Force did not carry out as much close air support as they expected. This situation can be interpreted as the CinC deciding to withdraw (or neglecting to provide) the JFLCC's rights to view the instructions and guidance which the CinC was providing to the JFACC. Of course, there may be advantages (e.g. in security) in General Schwarzkopf's approach; but it is important to have a framework for weighing the pros and cons of a particular decision, and it is hoped that the rights perspective could provide such a framework.

Very little knowledge has been acquired on ``rights'' within the process of planning an air campaign. This perspective may prove much more useful if the modelling is extended to look at the precursors of air campaign planning, such as the formation of a JTF, or selection of a course of action.

Key:

Solid link the agent has a right to the resource

Checkmate: Security is an issue when conducting planning. But, rights is a concept not used in the military.

Rights Perspective

Responsibilities Perspective

responsibilities

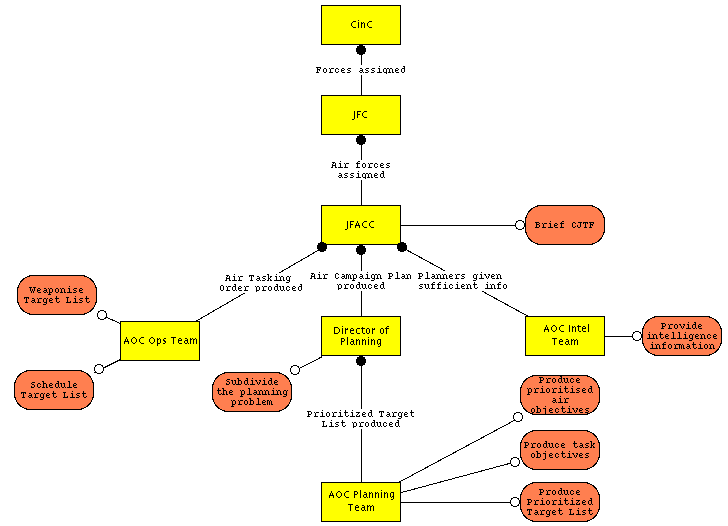

The Responsibilities perspective shows which agents are responsible to which other agents for a state of affairs, and what obligations agents have as a result of their responsibilities. As with the Rights perspective, there has been little information gathered for the Responsibilities perspective at present; the diagram in Figure responsb illustrates the format which a diagram of the Responsibilities perspective would take.

Key:

Link with black circle the first agent is responsible to the second for a state of affairs (which is indicated by the label on the link)
Link with white circle the agent is obliged to perform the activity

Responsibilities Perspective

Checkmate: didi not understand the point of this diagram. The hierarchy presented in inaccurate.

Task model

The CommonKADS Task Model is a more detailed version of the process perspective of the organizational model. The process perspective of the organizational model is intended to represent the overall workflow and/or control flow of an organization's primary processes; the task model describes the activities which are executed in an organizational environment, with an emphasis on deciding which activities could be suitable candidates for computer software support Breuker94. The extra detail includes the inputs and outputs of these activities; the agents who can perform these activities; and any temporal restrictions on activities.[6] The results of the analysis are displayed in a diagram, showing dependencies between different activities, and (optionally) the roles of the agents who are expected to take on these activities.

[6] The full list of activity attributes can be seen in the descriptions of activities given in the models themselves. The list is not entirely derived from CommonKADS; instead, it is derived from the AIAI Enterprise Ontology Uschold95.

Once the organizational model had been produced, a task model was produced which focused on the strategic planning of an Air Campaign Plan. The part of the process which was considered started with the CinC issuing policy and guidance to the JFACC for use within the planning process, and finished with the production of a Master Air Attack Plan (MAAP). This closely corresponds with those parts of the Air Campaign Planning process which are carried out by the planning staff at the JFACC's Air Operations Center.

One of the main purposes of the task model is to help in deciding which activities could be suitable candidates for computer software support. In order to support this decision, some further information about the activities was acquired, using the ``repertory grid'' knowledge acquisition technique (see appendix appxrepgrid). The information acquired was:

Task models were developed for two of the activities identified at the top level of air campaign planning. These activities were Prepare for Air Campaign Planning and Plan Air Campaign. In order to improve the quality of information which can be conveyed by the diagrams, the IDEF3 technique was used instead of CommonKADS' suggested diagram format. This technique represents the exact ordering of processes in more detail than the graphical format suggested by CommonKADS.

Task Model: Prepare for Air Campaign Planning

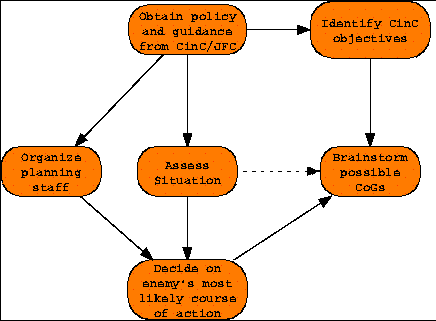

The task model for preparing for air campaign planning is shown in the Figure below.

Key:

Task Model: Prepare for Air Campaign planning

Description of activities:

Obtain policy and guidance from CinC

: The JFACC must receive instructions, and guidance on military and political policy, before he can initiate the planning of an air campaign. These instructions are usually written by a J3 or a J5 on the JFC's staff.

The content of the guidance is likely to be at the level of theater political objectives and theater military objectives. These may include:

The policy and guidance should also include Rules of Engagement which have been defined.

Attributes:

Predecessor

: None (as far as Air Campaign Planning is concerned)

Successor

: Assess Situation, Identify CinC objectives, Brainstorm possible Centers of Gravity

Component

: None

Doer

: This activity is done by the JFC, who then passes the information on to the JFACC and his staff. The JFC and the JFACC may be in the same room when the CinC expresses his policy and guidance; however, even if this is the case, the JFC will always add his own input to the CinC's guidance. There may be documented guidance, but the most elaborate guidance will always be verbal.

Owner

: The JFC is responsible for obtaining guidance from the CinC and passing it on to the JFACC and his staff (principally the Chief of Plans). However, if the Chief of Plans doesn't get adequate guidance, he will start asking for it, through appropriate channels. This often requires the planning staff to write their own version of the guidance, and then present it to the JFC for correction (see ``Identifying CinC objectives'' below).

Interval

: This activity is normally carried out simultaneously with the formation of a JTF. In the early phases of an operation, additional guidance is likely, on a daily basis.

In the later phases of an operation, the planning staff's interpretation of policy and guidance is endorsed by default -- that is, if they don't hear anything, they assume that there are no problems. The guidance should be reviewed by the planning staff at least once per day, to take account of possible changes. Changes may occur if the President makes new public statements; or if allies join or leave the coalition; or if the enemy sues for peace.

Duration

: 5-15 minutes. The activity doesn't usually take very long, because the JFACC will probably have already spent time considering the situation, and the policy and guidance which is obtained is likely to confirm a previously formulated hypothesis. There's also little time spent on evaluation of whether to follow the CinC's policy; it's an order, so there is no option to decide whether to follow it or not.

Experience required

: Medium.

Likelihood of a mistake

: Medium. The overall policy is rarely misunderstood -- and if it is misunderstood, the JFACC's understanding is corrected (often painfully!) at the next briefing of the JFC, which is normally in the afternoon of the first day of planning. However, ambiguous statements may be interpreted incorrectly (see ``Identify CinC objectives'' below).

Seriousness of a mistake

: Fairly high. It is likely that an entire days' planning will be based on wrong assumptions, and is therefore likely to be wasted.

Pre-Condition

: The decision to form a JTF; the designation of components (which will include the appointment of a JFACC); the provision of guidance by the National Command Authority and/or the CinC.

Effect

: The production of orders or directions, expressing the policy and guidance to be used by the planning staff.

Resource

: There are formal documents (e.g. the commander's assessment) which will contain some statements about policy and guidance. These tend to be used as reference documents, because the actual policy and guidance used is based on the written statements and on verbal elaborations.

Organize planning staff

: The Chief of Plans draws together a planning staff. Ideally, the groups will be pairs, with one member of the Planning unit working with one member of the Intel unit. Checkmate claim that in practice, this rarely happens.

Attributes:

Predecessor

: None, as far as Air Campaign Planning is concerned

Successor

: Decide on enemy's most likely course of action

Component

: None

Duration

: 5-15 minutes

Doer

: The Chief of Plans -- with strong input from the JFACC.

Owner

: JFACC

Interval

: Immediately after the preconditions are fulfilled, and definitely within a day of the initialization of a JTF. Checkmate say that this process is almost automatic; Doug Holmes suggested that some Chiefs of Plans might give more thought to this process than others. Once the organization has been established, there is usually no formal review; it only gets revised if the people on the job do poorly or if the Chief of Plans becomes aware of new information sources/resources.

In a long conflict, there's effectively an annual review because of annual cycling of personnel (which normally implies a new Chief of Plans).

Experience required

: Fairly high.

Likelihood of mistake

: Medium. The Checkmate planners disagreed on this point. It was argued that mistakes are rare, because Directors of Planning become fairly skilled at this job; but the knowledge was acquired when two of the staff members at Checkmate had just returned from an exercise on which the planning staff were badly organized.

Seriousness of mistake

: Fairly high. Again, there was disagreement among the Checkmate staff. A mistake here causes inefficiency; it takes time to overcome a faulty organization. However, it was argued that faults in the organization quickly become apparent when deadlines approach, so they are normally corrected; indeed, they're often self-correcting. In addition, different styles of organization are capable of achieving the same result.

Pre-Condition

: Guidance has been obtained from the CinC/JFC; a JTF has been formed; a Chief of Plans has been appointed.

Effect

: The planning staff are organized into planning teams.

Resource

: The planning staff are typically built up from a JFACC's existing staff, plus other officers who are known to the JFACC. The information available to the staff is crucial; in times of genuine crisis, the amount of information available to planning staff will increase e.g. 9th AF don't have good access to national data in peacetime, but are likely to be given access to that data in wartime.

Decide on enemy's most likely course of action

: The JFACC must decide on the enemy's most likely course of action. This requires background knowledge as well as a good assessment of the current situation. This decision is a refinement of the analysis performed when choosing a Course of Action. The selection of a Course of Action involves a great deal of wargaming. Ideally, multiple analyses of the enemy's courses of action (best case/ worst case/ most likely) should be performed, but this is not currently done.

Attributes:

Predecessor

: Assess situation, Organize planning staff

Successor

: Brainstorm possible centers of gravity. In fact, this activity is probably not essential for brainstorming to begin, but it will probably be required before brainstorming can be considered to be finished.

Component

: None

Duration

: 1-3 hours. Taking extra time is not judged to be worth the marginal improvement obtained.

Doer

: The whole planning staff, plus associated Intel personnel. Typically the planners will take the lead in this because they are the ones who are used to thinking about intent. However, Intel staff need to be closely involved; if no Intel personnel are formally assigned to the planning staff, the planners ought to get 2 experienced and knowledgeable Intel officers in as part of the discussion

Owner

: The planning staff and the Chief of Plans. The key to determining ownership is to see what happens when the planners' assessments of the enemy's likely course of action disagree with the assessments of the senior officers; in this case, the planners are more likely to use their own assessments as long as the plan addresses the senior officers' concerns.

Interval

: This takes place fairly quickly -- within a day of the whole situation starting up. It's revisited fairly often -- maybe every other day -- within the first 2 weeks of the conflict. Thereafter, it's only only revisited if a major event confirms or disproves it. Monitoring the accuracy of this assessment is more the responsibility of the Intel personnel on the planning staff than of the planners themselves.

Experience required

: Fairly high.

Likelihood of mistake

: Medium. The emphasis here is on making a decision which is ``good enough''. The assessment of the enemy's likely course of action could probably be made more accurate, but the marginal improvement is usually judged to be not worth the extra time required.

Seriousness of mistake

: Very high. Despite the seriousness of mistakes on this activity, mistakes do happen; the beginning of Desert Storm is a good example, when few planners correctly predicted Saddam Hussein's dig-in-and-wait strategy. Fortunately, this strategy was less damaging than the one which had been predicted.

Effect

: The output of this process is a hypothetical projection of the current situation, focusing selection of important Centers of Gravity. The projection is typically represented as an assessment of enemy intent, usually in note form. If the activity is carried out by using Red and Blue teams to plan the conflict from the perspective of both sides (which is considered to be a good approach), a consensus on enemy intent tends to emerge within the planning staff.

It's a very important process; if you can predict the enemy's plans, you have a huge advantage.

Resource

: The primary resource requirement for this activity is experienced staff. Other resources may include

Identify CinC objectives

: The JFACC must identify CinC objectives (i.e. campaign objectives, military objectives, political objectives, and maybe even national objectives) from the policy and guidance which he has received from higher echelons. It's actually possible that the JFACC might negotiate these objectives, though it's unlikely (unless explicitly invited) until the later stages of planning, when the JFACC may have a good case for the negotiation of objectives, based on analysis of centers of gravity and available resources. The JFACC must also identify the CinC's preferred prioritization of these objectives.

Attributes:

Predecessor

: Obtain policy and guidance from CinC/JFC

Successor

: Brainstorm possible centers of gravity.

Component

: None

Duration

: 1-3 hours

Doer

: In theory, the JFACC performs this task, and communicates the results to the Chief of Plans. In practice, however, the guidance may include phrases such as ``decisive air power'', which are insufficiently specified for planning purposes. This activity may therefore involve feedback between the planning staff and the JFACC, in which the exact intent is determined by rephrasing the policy and guidance. Sometimes, the guidance given is so vague that a member of the planning staff writes his own interpretation of the guidance, in the form of a set of objectives, and then asks the senior officer to state whether these objectives accurately reflect his intent. Checkmate say that, when they have acted as planning staff, they have never known a JFACC to provide them with a set of objectives which did not need further clarification.

This process is particularly common in the case where the JFACC does not explicitly specify objectives; but if he does, the planning staff still need to clarify and review the objectives for completeness. This ``sceptical review'' is an accepted part of the planning staff's function; indeed, it seems to lie at the heart of several of the processes carried out during air campaign planning.

Owner

: Chief of Plans

Interval

: This activity is done once, and only revisited if there is an explicit change in the CinC's objectives

Experience required

: Fairly high.

Likelihood of mistake

: Medium. There are many nuances in the language used which need to be understood, and the reader also requires a lot of previously acquired contextual information to understand the objectives fully.

Seriousness of mistake

: Very high. If the objectives are not correctly identified at this stage, the JFC should (eventually) correct them, but not until planning effort has been wasted. If, however, the JFC or JFACC approves a set of objectives which are incorrect or ambiguous, it is possible that the mistakes will not be noticed for a long time, perhaps not until missions have been flown.

Pre-Condition

: Policy and guidance has been obtained from the JFC.

Effect

: This activity produces a clear understanding of the CinC's objectives. A clear understanding of these objectives is crucial, since they form the starting point for the planning of an air campaign.

Resource

: Resources used for this activity include:

Assess situation

: Assess the military (and political) situation, using background information and local knowledge. This updates the planning assumptions that went into the selecting of a Course of Action (see Figure proctop). The updating of these assumptions includes the validation of constraints and restraints, and of the political situation.

This activity requires looking at the situation assessment produced when determining a course of action, and trying to identify and correct any weaknesses with this assessment. The factors considered will include:

The situation assessment provides planning and evaluation context, which is referenced all the time as things change in the real world. This context is used as a frame of reference for communications. Note that the primary use of this frame of reference is to foster communication between the JFACC and the staff who are directly responsible to him; the frame of reference is probably only fully understood by the JFACC, the planners, and the other personnel in the Air Operations Center. It may filter further upwards through the planning hierarchy until it supports the President's picture of events, but it isn't understood by individual pilots.

There is not much lateral communication (between different components of the JTF), which is unfortunate, as failure to agree a common situation assessment between different components can cause problems. The AOC planning meetings will be attended by the Liaison Elements from the other components, but they don't formally report back to their own component commanders. In addition, there is no guarantee that the JFC will agree with a component commander's assessment of the situation; taking Desert Storm as an example, the JFC considered the Republican Guard to be an important center of gravity for the Red forces, whereas the JFLCC did not consider them to be particularly important.

Attributes:

Predecessor

: can be concurrent with Obtain policy and guidance from CinC/JFC

Successor

: Decide on enemy's most likely course of action

Component

: None

Duration

: 1-3 hours

Doer

: JFACC (perhaps in conjunction with the JFC and/or the planning staff, if appointed)

Owner

: Chief of plans (or JFACC)

Interval

: See Obtain policy and guidance. However, the situation assessment always gets enriched over time.

Experience required

: Fairly high.

Likelihood of mistake

: Medium.

Seriousness of mistake

: Very high.

Pre-Condition

:

Effect

: The output of this activity is a set of informal notes and situation maps. There is a portion in the formal campaign plan document which is intended for recording the situation assessment, but it's unlikely to be written up at this point.

Resource

: This activity uses intelligence documents, open source documents (such as the CIA World Fact Book, and maps), results of air surveillance missions, personal experience and training, and CinC's policy and guidance.

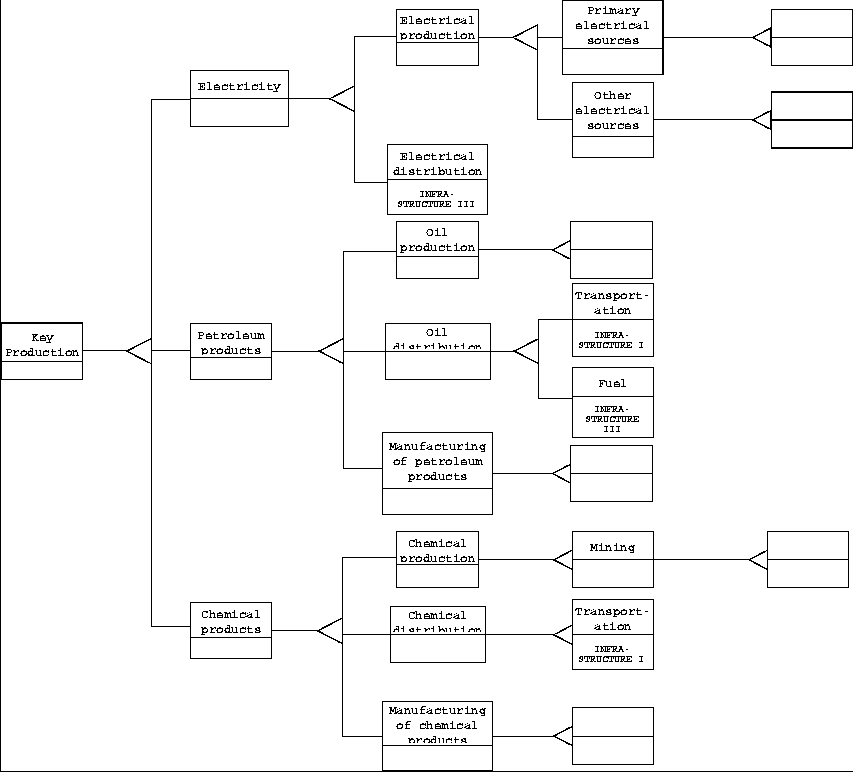

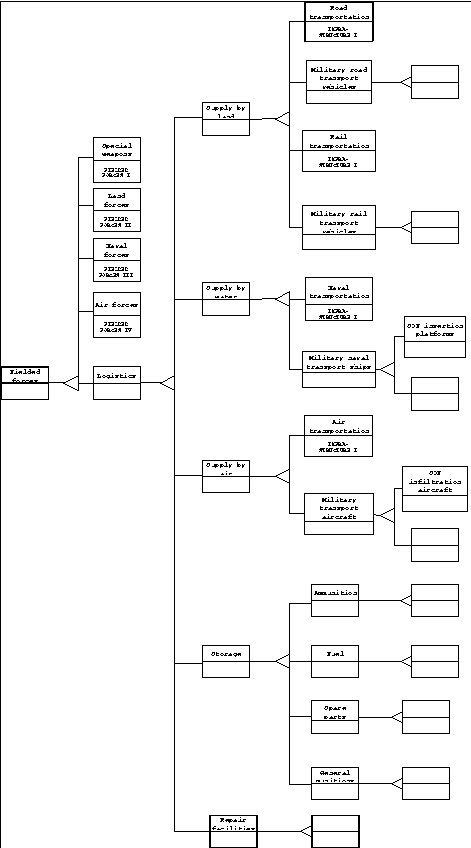

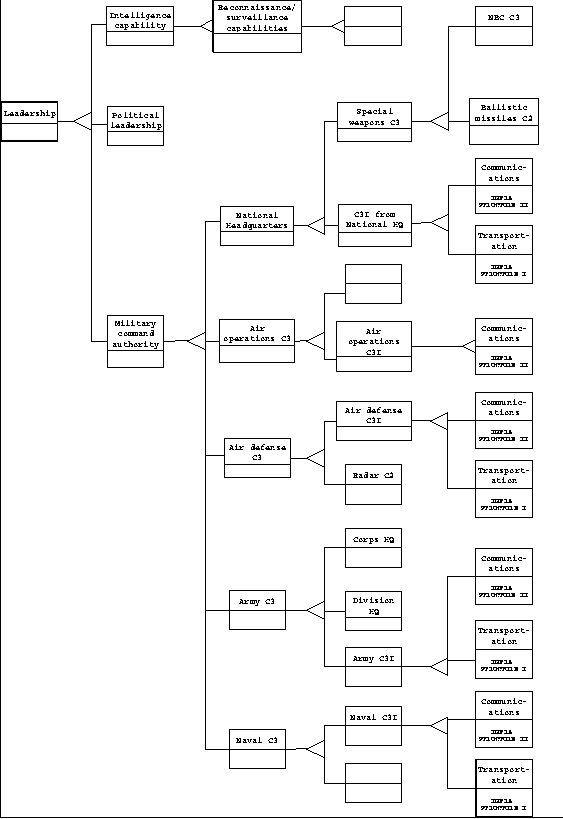

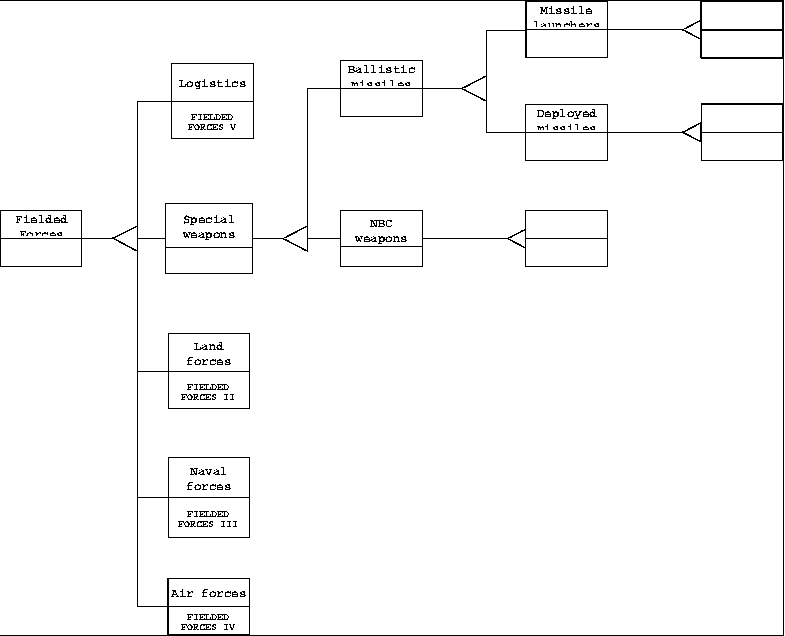

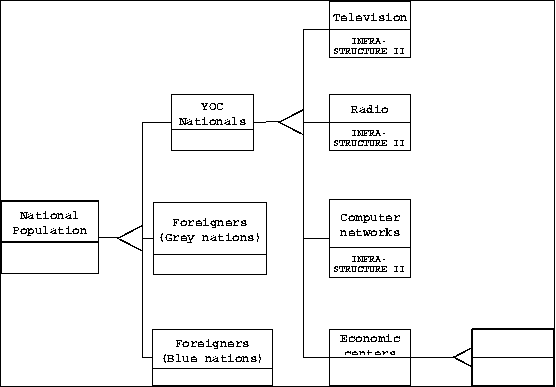

Brainstorm possible centers of gravity

:

This involves a group of planners meeting together and trying to identify as many enemy centers of gravity as possible. Centers of gravity can be specified at different levels of abstraction; a suggested hierarchy of centers of gravity can be found in appendix Centers of Gravity. The brainstorming activity generates centers of gravity which are suitable for inserting into air objectives. At this level, centers of gravity may take one of a number of forms:

Centers of gravity are considered under the following five headings:

Attributes:

Predecessor

: Identify CinC objectives

Successor

: Plan Air Campaign

Component

: None

Doer

: Planners

Owner

: Chief of Plans (probably)

Interval

: This is typically carried out as soon as the CinC's objectives are understood.

Duration

: 1-3 hours

Experience required

: No information is available from the repertory grid analysis, although anecdotal evidence suggests that the experience required for this activity is high.

Likelihood of mistake

: No information available

Seriousness of mistake

: No information available

Pre-Condition

: Higher level ``centers of gravity'' have been identified in the CinC's objectives

Effect

: Generates a list of possible centers of gravity

Resource

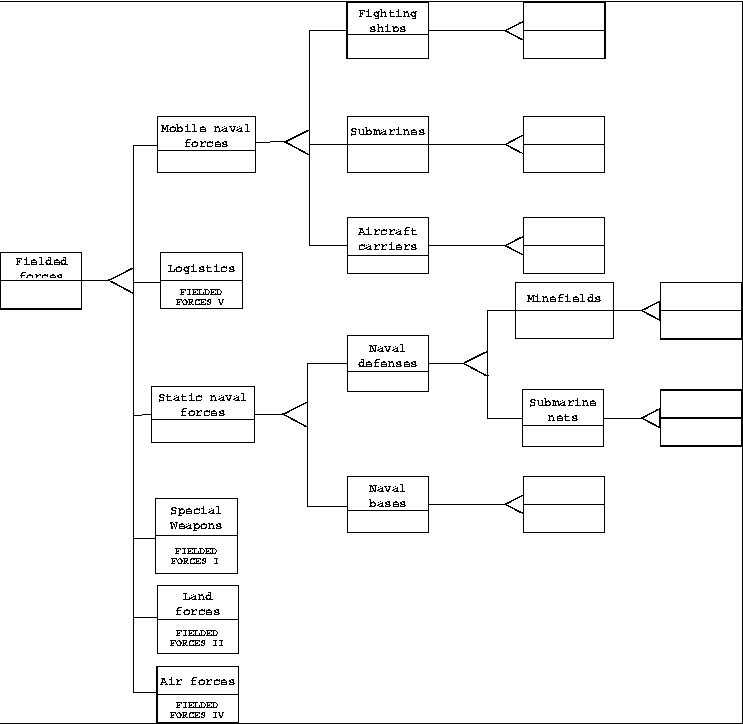

: CinC objectives, a pre-defined hierarchy of centers of gravity (this may be wholly or partially implicit in the planners' experience)

Task Model: Plan Air Campaign

The task model for planning an air campaign is shown in Figure procacp.

Description of activities:

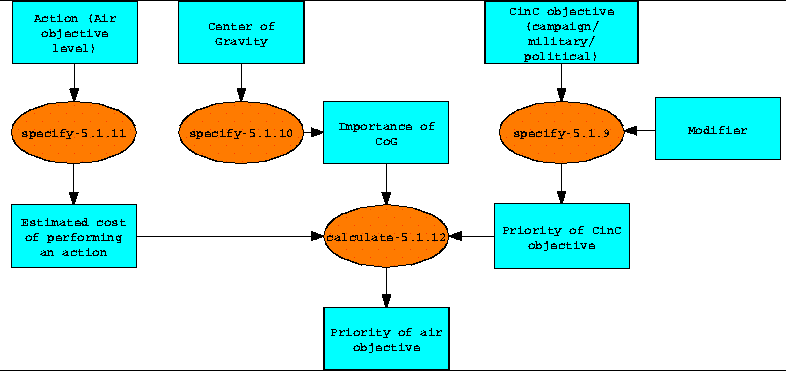

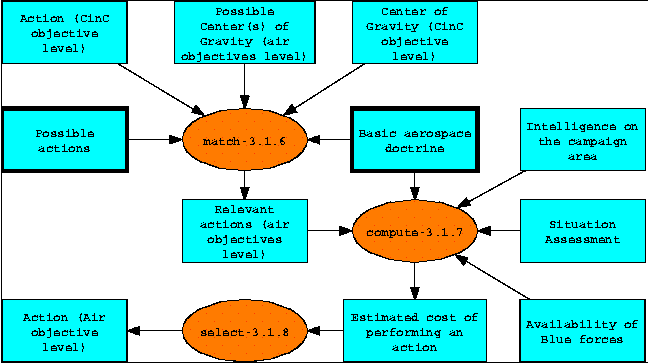

Identify and prioritize air objectives

: Given a list of CinC objectives, and a set of possible centers of gravity, the planners must devise air objectives which, when achieved, will fulfil all of the CinC objectives.

Attributes:

Predecessor

: Prepare for Air Campaign Planning

Successor

: Subdivide the planning problem, Brief JFC

Component

: Several; see section ExpertiseModel.

Doer

: Planners

Owner

: Chief of Plans

Interval

: The identification and prioritization of air objectives usually occupies a significant proportion of the first day of the planning cycle.

Duration

: 3 hours - 1 day

Experience required

: Very high. Identifying and prioritizing air objectives is a more difficult activity than doing the same for air tasks; prioritizing targets is the easiest task of the three, though the difference is not great.

Likelihood of mistake

: Fairly high; although there isn't much experience available concerning mistakes in these activities.

Seriousness of mistake

: Medium.

Pre-Condition

: CinC objectives and possible centers of gravity must be available.

Effect

: A prioritized list of air objectives is produced. This list is used by the JFACC to brief the JFC; the briefing will also identify the justification for selection and prioritization of the air objectives. This justification should be heavily, or even totally, based on the CinC objectives.

Resource

: CinC objectives, hierarchy of centers of gravity

Subdivide the planning problem

: The production of the Air Campaign Plan is subdivided to allow the planners to focus on different aspects of the problem. The subdivision will use one or more of the following criteria:

It would be helpful to use a further subdivision, in which the best case scenario, worst case scenario, and most likely scenario were examined independently. However, this would require breaking down the planning team into smaller groups, which is usually infeasible due to lack of personnel.

The planning team will also establish metrics for evaluation of the effectiveness of a phase; the metrics may include cost, logistics, intelligence reports (from the JFACC's intelligence staff, commonly known as INTEL), and resources.

Attributes:

Predecessor

: Identify and prioritize air objectives

Successor

: identify, prioritize and sequence air tasks

Component

: None

Doer

: Chief of Plans

Owner

: Chief of Plans

Interval

: This activity usually takes place after air objectives have been identified and prioritized.

Duration

: 5-15 minutes

Experience required

: Medium

Likelihood of mistake

: Fairly low

Seriousness of mistake

: Medium

Pre-Condition

: Air objectives must be defined.

Effect

: The effect of this activity is to speed up certain aspects of the planning, or to plan certain aspects more thoroughly.

Resource

: Air objectives

Brief JFC

: The JFC is briefed by the JFACC every day; this usually means that the first day's briefing covers the identification and prioritization of air objectives, while the second day's briefing covers the air tasks. The JFACC explains the objectives and the current state of the campaign plan. The JFC is likely to provide feedback, saying that the plan has been prepared incorrectly, or that there are further instructions which the planners need to take into account. These instructions might include extra rules of engagement (e.g. ``the President says don't attack within 50 miles of the enemy capital city''); extra CinC objectives (e.g. ``it's important to disrupt the enemy's anti-tank capability''); or they may be concerned with interaction with the other forces in the JTF (e.g. ``coordinate better with land forces'', ``deconflict your plan with SOF''). Deconfliction of plans is handled by the Ops group.

Attributes:

Predecessor

: Identify and prioritize air objectives OR Identify, prioritize and sequence air tasks

Successor

: None

Component

: None

Doer

: Planners

Owner

: Chief of Plans

Interval

: Once per day, usually in the afternoon

Duration

: 30 minutes - 1 hour; occasionally up to 2 hours

Likelihood of mistake

: Fairly low.

Seriousness of mistake

: Fairly low; the JFC will correct mistakes

Experience required

: Fairly high. This is a complex activity. Doug Holmes hinted at the reason for the complexity when he stated that this activity required a lot of evaluation ``because there's a lot of tradeoffs in what you say and what you do''.

Pre-Condition

: Some or all of the appropriate objectives have been produced.

Effect

: Further CinC objectives may be generated, and/or deconfliction requirements may be highlighted.

Resource

: CinC objectives, hierarchy of centers of gravity.

Identify, prioritize and sequence air tasks

: This activity is similar in principle to the identification and prioritization of air objectives; it requires identifying air tasks to fulfil each air objective, instead of identifying air objectives to fulfil each CinC objective. However, it is typically much less time-consuming than identifying air objectives. This may be because it is a somewhat simpler activity than identifying and prioritizing air objectives. However, the distinguishing of prioritization from sequencing is not currently performed clearly, and the introduction of this distinction may lead to changes in the requirements for this activity.

Attributes:

Predecessor

: Subdivide the planning problem,

Successor

: Brief JFC, Produce Prioritized Target List

Component

: Several; see Figure TaskStrucTaskObj

Doer

: Planners

Owner

: Chief of Plans

Interval

: The identification, prioritization and sequencing of task objectives usually occupies half of the second day of the planning cycle.

Duration

: 1-3 hours

Experience required

: Fairly high

Likelihood of mistake

: Medium

Seriousness of mistake

: Fairly high

Pre-Condition

: Air objectives and a hierarchy of centers of gravity are available.

Effect

: A sequenced list of air tasks is produced. The sequencing is related to the priority of air objectives, except where some air objectives require certain pre-conditions (e.g. disruption of early warning systems). This list is used by the JFACC to brief the JFC; the briefing should also identify the justification for selection and prioritization of the air tasks.

Resource

: CinC objectives, hierarchy of centers of gravity

Identify and Prioritize Targets

: This activity requires selecting targets to fulfil each air task. It is simpler than the identification and prioritization of air objectives, and probably simpler than identifying air tasks; however, there are a lot of targets to identify (typically hundreds).

Attributes:

Predecessor

: identify, prioritize and sequence air tasks

Successor

: Issue target list

Component

: Several; see Figure TaskStrucTargets

Doer

: Planners

Owner

: Chief of Plans

Interval

: The identification and prioritization of targets usually occupies the remainder of the second day of the planning cycle.

Duration

: 30 minutes - 1 hour. [7]

Likelihood of mistake

: Fairly high

Seriousness of mistake

: Medium

Experience required

: Fairly high

Pre-Condition

: Air tasks and information about possible targets are available.

Effect

: A prioritized list of targets is produced. The prioritization is based on importance and on the necessary sequencing of certain activities (such as disrupting key radar installations). The distinction between the two reasons for prioritization is not explicitly recorded, but probably should be.

Resource

: Air tasks, information about possible targets and associated defenses

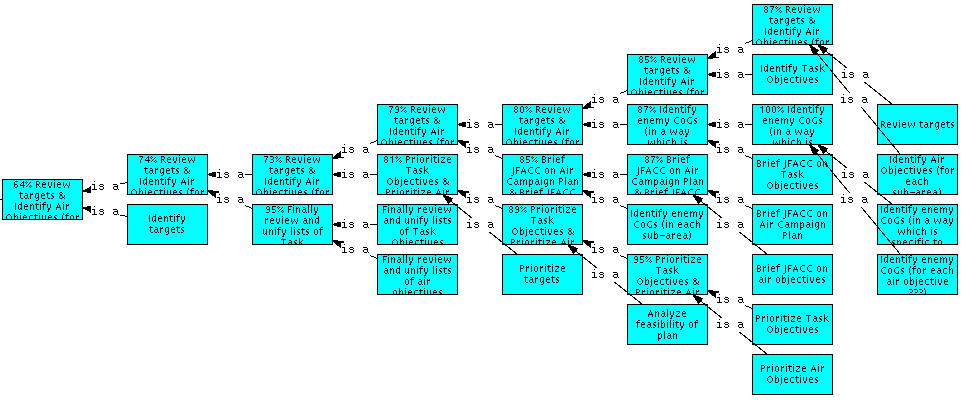

[7] This is based on the repertory grids acquired from Checkmate. However, this figure contradicts the opinions of the experts from ISX. This needs to be verified.

At this point, the list of targets is sent to the Joint Targetting Board, who will discuss it and alter it to produce a revised Target List. This modified target list is then incorporated into the Master Air Attack Plan (MAAP), which is passed to the Ops group for weaponeering and scheduling. Scheduling is performed using the CTEMS system, which identifies if there are suitable resources available to strike the suggested targets; weaponeering is performed using the RAAP system. These activities result in the Air Tasking Order (ATO), which specifies missions to be flown.

Sometimes, the the JFACC or another senior officer will provide specific guidance to the schedulers and the weaponeers; for example, if there is a shortage of munitions, he will direct that certain munitions are reserved for certain targets. The planners will usually take this guidance into account during planning.

There may be occasions where a target which is identified as worthy of attacking by air could be targeted by Army helicopters or ground-based SOF forces with equal or greater efficiency. In such cases, there will first be informal liaison between the AOC planners and the appropriate land forces to determine if it's feasible for the land forces to take on the operation; if so, the JFACC will include a request for these forces in his briefing for the JFC.

Interaction with land forces gives the relevant land forces rights to view the Master Air Attack plan, for the sake of deconfliction of operations.

Task Model: Prepare for Air Campaign Planning: Assets Perspective

The assets perspective for preparing for air campaign planning is shown in Figure asstprep. It shows the activities identified in the Task Model, along with the resources which are produced, used, modified and consumed by these activities.

Key:

Labelled link the activity produces/consumes/uses/modifies the resource
Diamond Passive resource
Rectangle Human Resource
Rounded rectangle Activity

ACP Assets Perspective: Prepare for ACP planning

Partial description:

Situation Assessment

is usually comparatively short in its written form; perhaps a paragraph in a document, or the first 2 slides in a briefing. The format varies between different operational theaters; in some cases, this assessment will be incorporated into the formal air campaign plan.

Campaign Objectives and Military Objectives

do not usually appear in a document these days; instead, they appear in the Objectives Viewer of ACPT (the Air Campaign Planning Tool). However, a slot for these objectives appears in formal campaign planning templates, so if ACPT did not exist, a document describing these objectives would be produced.

Projection of current situation

: This is typically represented in note form, although it would be advantageous if it were made more formal.

Description of enemy Centers of Gravity

: There is currently no pre-defined list of centers of gravity (although the hierarchies shown in appendix Centers of Gravity are intended to supply a pre-defined framework for analysis). There are editors in ACPT which allow centers of gravity to be specified.

Task Model: Plan Air Campaign: Assets Perspective

The assets perspective for preparing for air campaign planning is shown in Figure asstprep. It shows the activities identified in the Task Model, along with the resources which are produced, used, modified and consumed by these activities.

Key:

Labelled link the activity produces/consumes/uses/modifies the resource
Diamond Passive resource
Ellipse Computer Resource
Rounded rectangle Activity

ACP Assets Perspective: Plan Air Campaign

Prioritized Air Objectives List

: A list of the air objectives defined, with associated priorities. Not all formal ACPs include this list, although Doug Holmes said that if he were a JFACC, he'd want this list on a daily basis.

Air Objectives Briefing

contains:

The prioritization of air objectives usually correlates closely with the sequencing (temporal ordering) or air objectives.

Prioritized Air Tasks

: A ordered list of the air tasks.

Air Tasks Briefing

: probably similar to the air objectives briefing, but concentrating on air tasks rather than air objectives.

Chosen subdivisions

can be described in a few lines of text, in a briefing or in ACPT.

Asset Database

and Target database: these currently exist, but no information has been obtained about their location, format or contents.

Master Air Attack Plan

: this is the formal document which is produced at the end of the planning of an air campaign.

Communication Model

The communication model represents all communication between different agents, as well as the content of the communication. This information can conveniently be represented in a single role-activity diagram, which shows which activities are carried out by which agents, and identifies points at which communication takes place Ould93. The communication model is shown in Figure commmodel. N.B. For implementation purposes, a more detailed model of communication will be required, showing which agent takes the initiative, the exact format of transactions, and any other key information (such as time-critical transactions).

The purpose behind role-activity modelling is to look beyond the activities which make up a process to the roles of the actors reponsible for carrying out those activities. This form of modelling has two effects. The first effect is in providing support to the individual role actors by being clear about their roles, and in identifying with whom they are required to interact at each stage of the process in order to complete their role. The second effect is in identifying inefficiencies in the process itself.

One indication of inefficiency within a process is the presence of a large number of interactions between particular roles. In general, interactions involve the transfer of information between roles. Verbal transfer involves personal contact between the role actors, which requires finding convenient times for meetings, telephone conversations etc. Transferring information via textual means requires an efficient transfer mechanism and the motivation of the receiving role actor to act on that information within a reasonable time. Delays within a process are particularly prevalent where more than two roles are involved, or where the role actors are separated geographically.

The following diagram presents a high-level model of some of the roles and activities occurring within the ACP process. The model shows a certain amount of interaction between the JFACC and the planners, and between the JFACC and the Ops role. However it is thought that this is unlikely to cause a problem within the the ACP process as the role actors are all contained within the Air Operations Center; indeed they are usually situated within the same room. It is possible that some of the roles indirectly influencing the production of the ACP but outside the scope of this model, such as interaction between the JFC and all his Component Commanders, and interactions between the Component Commanders themselves, may be more likely to be the cause of inefficiencies and bottlenecks. However this type of role interaction will be dependent on the battle situation and the personalities of the Commanders involved.

[8] This notation is based on that described in STRIM, a method for business process re-engineering developed by Praxis Systems plc.

STRIM consists of 2 phases:

The diagrams have been produced using the RADitor software system.

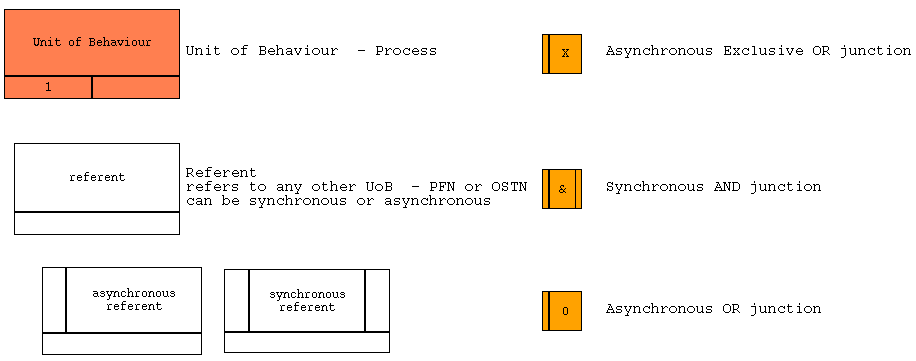

Role Activity Diagram Notation
Attribute Icon and Definition
process a set of roles, the overall activity that is taking place
role shown as a block. Primary structuring concept. A role is a a sequence of activities performed by a single person or a department
activity The details of how the activity is carried out are unimportant. The activity is performed by the role actor which may be a person o computer or combination of the two. The role may exist whilst the actor changes, and one actor may perform more than one role. A number of types of activity exist:
actions, shown as a square. These are performed by a role in isolation
interactions, shown as an action in one role box connected by horizontal lines to an action in one or more other role boxes. Interactions indicate that more than one role is involved in carrying out an action. Information may be passed passed between roles during an interaction.
start role, shown as a pentagon, causes another role to be created
external events, generally ignored but if needed shown as an action with a line arrow going into the left hand side
state shown as a circle and used to indicate the start or end of a branch in the actions carried out within a single role, or used as a go-to referring back to an earlier activity within the role
refinements indicate that some activities are alternatives or can be carried out concurrently. Refinements start and finish with a state and are of two types:
part refinement shown as two triangles, apex upwards, indicating concurrency;
case refinement shown as two circles and indicating alternatives

Notation for Role Activity Diagram

Expertise Model

ExpertiseModel

The purpose of the Task Model is to identify activities which would benefit from support, particularly computerized support. It is common for some activities within a task model to be identified as knowledge-based activities; that is, activities which require significant expertise, experience or knowledge to enable them to be carried out well. The most appropriate technique for representing these activities in CommonKADS is to use the inference structures and task structures that form part of the CommonKADS Expertise Model.

There are at least three activities within the Task Model described above which can usefully be modelled using the CommonKADS Expertise Model; they are the identification and prioritization of air objectives, the identification, prioritizing \& sequencing of air tasks, and the identification and prioritizing of targets. This document contains a full expertise model for the identification and prioritization of air objectives, and task structures (partial expertise models) for the other two activities. It can be seen that the task structures for all three activities are similar, which suggests that the full expertise models for these three activities will have many similarities.

The Expertise Model is a model of the expertise required to perform a particular activity. It is the most detailed of all the CommonKADS models (see Appendix CommonKADSAppendix for more information). This model is divided into three components, each of which is represented by one or more diagrams:

The task structures can be considered as a lower level decomposition of certain activities in the Task Model. There is no need for an accompanying Asset perspective, however, because the inference structures supply information about interactions between activities and domain knowledge.

Identifying and Prioritizing Air Objectives

Task Knowledge

Key:

Solid link the first activity precedes the second
Dashed link there is an information flow from the first activity to the second.

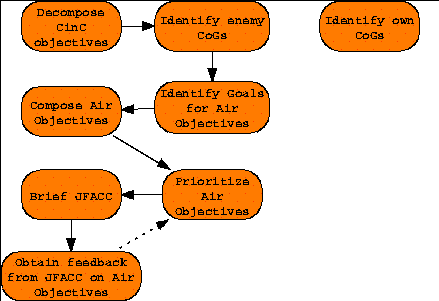

"Task Structure: Identify and Prioritize Air Objectives"TaskStrucAirObj

Description of activities:

Decompose CinC objectives

: Break down the CinC objectives into their component verbs, nouns and modifiers. This should be a simple activity if the CinC objectives have been specified clearly.

Identify enemy Centers of Gravity

: This activity is carried out by each planning team. Their task is to analyze the enemy's military forces, infrastructure, leadership, population and economy to look for limitations and vulnerabilities. The planning staff will use intelligence documents and books for details. The planners then use this analysis to identify key points in enemy territory which, if damaged or destroyed, would seriously disrupt the enemy's intended or actual undesirable operations. These key points are known as Centers of Gravity. For example, the planners might consider the command and control of enemy troops to be a possible weak point. Some troops are trained to not think on their own so loss of command and control would result in immediate chaos. In this situation, enemy command and control centers would be considered to be centers of gravity.

This activity takes half a day, which is a long time for a single activity. Despite this, the planners are aware that they don't identify all the centers of gravity, because of lack of time.

Attributes:

Predecessor

: Brainstorm possible centers of gravity, Identify CinC objectives

Successor

: Identify Air Objectives

Component

: None

Activity type

: Refine

Duration

: Half a day

Doer

: Planners

Owner

: Chief of plans

Interval

: Shortly after centers of gravity have been generated,

Experience required

: Fairly high

Likelihood of mistake

: Fairly high

Seriousness of mistake

: Medium

Pre-Condition

: CinC objectives have been obtained and defined in a suitable format.

Effect

: Centers of gravity are identified

Resource

: The identified centers of gravity are recorded in text in JPT when objectives are defined; no information is available on whether they are recorded in any other form.

Identify actions for air objectives

: This activity is carried out by each planning team. Their task is to identify objectives for the air forces to achieve. These objectives should be chosen to fulfil all the CinC's objectives. Typical air objectives might be ``gain air superiority'' or ``carry out interdiction operations''.

Planners usually take a breadth-first approach to the identification of objectives.

Attributes:

Predecessor

: Identify enemy centers of gravity

Successor

: Prioritize air objectives

Component

: Identify relevant actions; estimate cost of an action; select an action

Activity type

: Select

Duration

: 1-3 hours

Doer

: Planners

Owner

: Chief of plans

Interval

: After CinC objectives have been acquired and agreed.

Experience required

: Fairly high

Likelihood of mistake

: Medium

Seriousness of mistake

: Medium

Pre-Condition

: None

Effect

: an action is selected for each center of gravity

Resource

: CinC objectives

Identify own Centers of Gravity

: This is an activity which is similar to the identification of enemy centers of gravity. However, it is currently performed to a lesser level of detail than the identification of enemy CoGs (see appendix Centers of Gravity), probably because of time restrictions.

Compose air objectives

: combine an action, a center of gravity and a modifier into a single objective. This is a trivial task, unless the modifier needs adapting from the one provided in the CinC objective.

Prioritize Air Objectives

: This requires decisions about which air objectives are the most important. The key factor in this decision is the priority of the CinC objective(s) which are fulfilled by this air objective. However, a number of factors make this a complex task: the time delay between missions taking place and the enemy's capabilities being affected; the multiple calls on air power (e.g. requests from the land forces for close air support); and any importance or priority attached to the centers of gravity themselves (e.g. enemy weapons of mass destruction).

Attributes:

Predecessor

: Identify actions for air objectives

Successor

: Brief JFACC

Component

: Specify the priority of the CinC's objectives; specify ``goodness'' of an action; determine if an action addresses multiple objectives; calculate the priority of the air objective.

Duration

: 30 minutes - 1 hour

Doer

: Planners

Owner

: Chief of plans

Interval

: After all air objectives have been defined

Experience required

: Fairly high

Likelihood of mistake

: Fairly high

Seriousness of mistake

: Fairly high

Pre-Condition

: None

Effect

: A prioritized list of air objectives is produced

Resource

: Set of defined air objectives

Brief JFACC

and Obtain feedback from JFACC on Air Objectives: The JFACC is briefed every day, usually at a set time. On the first day of planning, he will be briefed on the chosen list of air objectives, with justifications for prioritization. He will give feedback on his opinion of the air objectives, especially their relevance to the campaign objectives and military objectives; he may also give specific instructions for modifications, based on his knowledge of operations which the Director of Planning is not aware of.

Attributes:

Predecessor

: Prioritize Air Objectives

Successor

: None

Component

: None

Duration

: 10-30 minutes

Doer

: Chief of plans

Owner

: Chief of plans

Interval

: See description above

Experience required

: Fairly low

Likelihood of mistake

: Fairly low

Seriousness of mistake

: Fairly low

Pre-Condition

: None

Effect

: Changes to the air objectives, or to their prioritization, are specified.

Resource

: Prioritized Air Objectives

Inference Knowledge

The inference knowledge for the identification and prioritization of air objectives is represented in Figures infairtp through to infaircl. It consists of a number of inference steps (ellipses) and knowledge roles (rectangles). The inference steps, which are labelled according to the type of inference which is being performed, correspond to activities in the task structure; the knowledge roles correspond to one or more items of domain knowledge. Static knowledge roles (which are distinguished by having a thicker border) indicate knowledge which is not transformed in any way by the problem-solving process. A ``double ellipse'' for an inference step indicates that that step is a composite inference step, which is broken down to a lower level of detail in a subsequent diagram.

Inference Structure: Identify and Prioritize Air Objectives (top level)

Inference steps:

decompose-1

: corresponds to the activity ``Decompose CinC objectives'';

refine-2

: corresponds to the activity ``Identify enemy Centers of Gravity'';

select-3

: corresponds to the activity ``Identify actions for air objectives'';

compose-4

: corresponds to the activity ``Compose air objectives'';

calculate-5

: corresponds to the activity ``Prioritize Air Objectives''.

Knowledge roles:

CinC objectives

: a list of the CinC's objectives, after clarification by the planners;

  • [Action (CinC objective level)]: The general format of objectives is, ``Perform ACTION on CENTER OF GRAVITY with optional MODIFIER''. This knowledge role represents the ACTION component of the CinC objective.
  • Center of Gravity (CinC Objective level)

    : This knowledge role represents the CENTER OF GRAVITY component of the CinC objective.

  • [Center(s) of gravity (air objectives level)]: The centers of gravity at the ``air objectives level'' are more specific than those at the ``CinC objectives level''. This knowledge role represents one or more CoGs which fully specify the higher level CoGs. For example, if the CoG at the CinC objectives level was ``production of chemical products'', then the CoGs at the air objectives level might be ``raw material production'', ``raw material distribution'', and ``manufacturing of chemical products''.
  • [Hierarchy of centers of gravity]: The links between CoGs at the CinC objectives level and the related CoGs at the Air objectives level can be represented within a hierarchy. The hierarchy is particularly appropriate because it has multiple levels; CoGs at the air objectives level are specified further to the level of air tasks, before being specified yet further into actual targets. A proposed hierarchy of CoGs can be found in Appendix Centers of Gravity.
  • Action (Air Objective level)

    : The action which must be applied to a CoG at the Air Objectives level in order to fulfil the action required by the CinC on the higher level CoG. For example, ``disrupt production of chemical products'' might lead to selection of the action ``destroy'' on ``manufacturing of chemical products''.

    Air Objective

    : Each identified center of gravity is combined with its selected action to constitute an air objective. Any modifier applied to the CinC objective is applied to the Air Objective, unless the planners have introduced additional modifiers as part of the selection of objectives. For example, preventing production of chemicals before a certain time might require cutting off the supply of raw materials several weeks earlier.

    Priority of air objective

    : The importance of achieveing an air objective. This list is genuinely a prioritized list; the issue of necessary sequencing does not affect the priority of air objectives, although it has a noticeable effect on the prioritization of air tasks, and of targets.

    Inference Structure: Select action (expansion of select-3)>

    Little information has been gathered so far on this process; the inference steps given below are extrapolated from what has been gathered, and from previous experience with activities requiring selection.

    match-3.1.6

    : This inference step, which corresponds to the sub-activity Identify relevant actions, involves looking up the list of possible actions and listing all relevant actions.

    compute-3.1.7

    : This inference step, which corresponds to the sub-activity Estimate cost of an action, requires consideration of the likely cost of performing a particular action on this center of gravity. No information has yet been gathered on how the cost is calculated; perhaps it is based on expected losses, and/or the opportunity cost (taking away certain specialized resources from other operations), and/or other factors. It may also be weighed against the likelihood of success.

    select-3.1.8

    : This inference step, which corresponds with the sub-activity Select an action, involves selection of the best action. In theory, this is simply a case of choosing the action with the best balance of cost vs. likelihood of success. In practice, the decision is more complicated, since the most appropriate action against one center of gravity will affect the action for other CoGs; for example, if the action ``destroy'' is applied to manufacturing plants, then no action is required against raw material supply to these plants, since it will cease of its own accord.

    Possible actions

    : Possible actions to perform on a center of gravity. The list of possible actions will vary depending on the center of gravity being addressed; for example, infrastructure-related CoGs will typically have a different list of possible actions from CoGs which related to fielded forces.

    Basic aerospace doctrine

    : This consists of guidance given in the ``purple book'' Burley93, as well as information gathered from experience by the planners; it suggests acceptable actions and preferred approaches.

    Relevant actions

    : Actions which may be relevant for a particular CoG, given the CinC objective.

    Estimated cost of an action

    : The estimated cost; perhaps a numerical measure?

    Availability of Blue forces

    : The current and expected availability of friendly military forces. In theory, this is not considered by the planners, but only by the Ops group and the weaponeers; in practice, the planners will take it into account when considering what actions are possible, and the likely cost of actions.

    Situation Assessment

    and Intelligence on the campaign area: These are derived from the ``Prepare for Air Campaign Planning'' process, shown in Figure procprep.

    Inference Structure: Calculating priority (expansion of calculate-5)}

    Very little information has been gathered on this process so far, so the descriptions given below are largely hypothetical.

    specify-9.1.9

    : Specify the priority of the CinC's objectives. The (approximate?) priority of the CinC objectives is usually identified by the planners when the CinC objectives are identified. If a CinC objective has a temporal modifier, this may also affect the priority of that objective.

    specify-9.1.10

    : Specify the estimated cost of an action. This has already been calculated (see compute-3.1.7 above), and should only need to be looked up.

    specify-9.1.11

    : Specify the importance of the center of gravity. This is likely to be a calculation. The importance is related to the priority accorded to the CinC objective, but also takes into account any a priori importance of the center of gravity (at the air objective level); for example, manufacturing plants may be considered to be more important than mineral mines. In addition, it is possible that affecting some lower level centers of gravity (e.g important transportation nodes) may fulfil more than one of the CinC's objectives; this should also be taken into account.

    calculate-9.1.12

    : Calculate the priority of the air objective. This is a cost/benefit analysis.

    Importance of CoG

    : The importance of the center of gravity, compared with the centers of gravity in other air objectives.

    Priority of CinC objective

    : The priority of CinC objectives, as defined by the CinC or the JFC (and, quite possibly, clarified by the JFACC or the planners).

    Domain Knowledge

    DomainAirObj

    Domain knowledge for this activity has been acquired by analyzing a list of CinC objectives, air objectives and air tasks which was provided by Checkmate. This list can be found in appendix appxobjectives.

    The domain knowledge for identifying and prioritizing air objectives consists of three major concepts:

    A grammar for expressing objectives is currently being prepared as part of the IFD-4 work; it is hoped that this grammar will specify more precisely the possible combinations of these concepts within each type of objective.

    \paragraph{Centers of gravity:}

    The centers of gravity which were acquired have been structured into a hierarchy. At the top level, the hierarchy is divided according to Col. Warden's 5-way classification of possible centers of gravity:

    The hierarchy is sufficiently detailed that it needs to be spread over several diagrams (Figures cglead to cgforce5 in appendix Centers of Gravity). An example is shown in Figure cgex.

    Centers of Gravity related to Transportation

    The hierarchies should be read from left to right; the top level centers of gravity are on the left, and the lowest level CoGs are on the right. The links between levels are subclass links; that is, a center of gravity at any level (except the top level) should be considered to be a subclass of the center of gravity at the next level up. The blank boxes are place-holders in parts of the hierarchy which ought to be expanded in order to produced a fully detailed hierarchy of CoGs.

    The key observations which lead to this hierarchical structuring were:

    From analysis of the objectives, it becomes clear that different levels of abstraction (usually) map to different types of objective. CoGs at the third level of the hierarchy are typically specified within a CinC objective (e.g. ``Disrupt flow of military equipment on national roadways''); CoGs at the fourth level of the hierarchy are typically specified within air objectives (e.g. ``Deny use of key choke points on the roads''); and CoGs at the fifth level of the hierarchy are typically specified within air tasks (e.g. ``Destroy bridges on roads between the capital and the southern border''). Targets should be considered as the sixth level of the hierarchy, although it is not feasible to display them in this document. The 5 levels of the hierarchy therefore correspond to:

    1. Col. Warden's 5 categories of centers of gravity;
    2. A (proposed) subcategorization of the 5 categories;
    3. Centers of gravity at a suitable level of abstraction for use in CinC objectives (the ``CinC objectives level'');
    4. Centers of gravity at a suitable level of abstraction for use in air objectives (the ``air objectives level'');
    5. Centers of gravity at a suitable level of abstraction for use in air tasks (the ``air tasks level'').

    A key component of the hierarchies which contributes to the goal of identifying all relevant centers of gravity is the identification of intra-hierarchy links. These show where a center of gravity in a different hierarchy is relevant to a center of gravity in this hierarchy. The name of the related hierarchy is displayed in the bottom half of the CoG node. For example, Figure cginf2, includes ``Couriers'' as a center of gravity. Since communication by courier is dependent on a good transportation network, an intra-hierarchy link to ``Transportation'' (which appears in Figure cginf1) is shown as the decomposition of the ``Couriers'' center of gravity.

    Actions:

    The types of actions which appear in objectives include words such as disrupt, destroy, deny use, and attrit. The full list of actions is currently under discussion, including discussions on whether some actions are only appropriate for certain types of CoG. A typical set of actions is given below:

    Action Definition
    Disrupt Temporarily reduce effectiveness
    Degrade Permanently reduce effectiveness
    Isolate Reduce effectiveness to zero until further notice
    Destroy Permanently reduce effectiveness to zero

    goaleffect Actions, ordered by effect

    Modifiers:

    The general format of objectives is ``Perform action on center of gravity with modifier''. The modifiers are optional, but many CinC objectives and air objectives, and some air tasks, have associated modifiers. These modifiers may be:

    The form and content of permitted modifiers is currently under discussion. A list of (almost) all the identified modifiers was prepared; it can be seen in tables CinCmodifiers and AirModifiers. A selection of modifiers are shown in table modifierex.

    YOC economic centers

    YOC military control

    national computer systems

    Modifiers: CinC Objectives Level modifierex

    Center of Gravity Modifier
    Geographical
    US citizens in the region
    YOC forces north of Desired Area
    Temporal
    until the flow of military resources
    is sufficiently slow
    Categorical
    YOC political control YOC armed forces
    YOC armed forces
    YOC political control YOC population
    YOC military control YOC population
    electricity YOC population
    petroleum products YOC population
    national television systems YOC population
    national radio systems YOC population
    YOC population

    Prioritizing Air Tasks

    Task Knowledge

    The task structure for producing and sequencing air tasks can be seen in Figure TaskStrucTaskObj. One of the main discoveries from this modelling exercise has been that the processes involved in producing prioritized air objectives, producing prioritized air tasks and producing a prioritized target list are very similar (see Figures TaskStrucAirObj, TaskStrucTaskObj and TaskStrucTargets). This observation, coupled with the hierarchies of centers of gravity (which suggests a similar format for domain knowledge in each of these three activities), suggest that the entire expertise models for these three activities will be very similar. It would, however, be instructive to identify any differences between these three models.

    Key:

    Solid link the first activity precedes the second
    Dashed link there is an information flow from the first activity to the second.

    Task Structure: Identify, prioritize \& sequence Air Tasks

    Description of activities:

    Identify enemy Centers of Gravity for review purposes

    : Although the air objectives have already been designed to target enemy Centers of Gravity, it's helpful to review the Centers of Gravity at this stage of planning.

    Identify air tasks (for each Air Objective)

    : Identifying task objectives for the air force to achieve consists of choosing air tasks which provide the maximum fulfilment of the air objectives, based on the air objectives chosen and on identified enemy Centers of Gravity.

    For example, if ``disrupt command and control'' had been specified as an Air Objective, possible air tasks might include:

    Prioritize air tasks

    is largely based on the prioritization of corresponding air objectives, although there may be other influences if certain air tasks can fulfil more than one air objective.

    Finally review and unify lists of tasks

    occurs at a meeting, to bring together all the air tasks in a single list and to ensure that all air objectives are addressed by air tasks.

    Brief JFACC

    and Obtain feedback from JFACC on Air Tasks: The JFACC's second briefing normally describes both identified air tasks and identified targets, since the identification of air tasks is a relatively quick activity. However, significant feedback may well be produced, enough for the planning staff to require a third day of planning to iteratively refine the lists of objectives and targets to meet the JFACC's requirements.

    Inference knowledge

    At present, the only information available which resembles inference knowledge for the activity of producing and sequencing air tasks is the ``assets perspective'' diagram shown in Figure InfStrucTaskObj. However, as discussed above, the inference structure is likely to be similar to the inference structure for identifying \& prioritizing air objectives, shown in Figures infairtp through infaircl.

    Key:

    Labelled link the activity produces/consumes/uses/modifies the resourc
    Diamond Passive resourc
    Ellipse Computer Resourc
    Rounded rectangle Activit

    ACP Assets Perspective: Prioritize Air Tasks

    Domain Knowledge

    As discussed above, the domain knowledge for air tasks consists of actions, modifiers, and centers of gravity taken from the hierarchy shown in appendix Centers of Gravity; for information on these, read section DomainAirObj on domain knowledge for air objectives. The hierarchy shows that a certain level of CoGs are specific to air tasks. It is possible that certain actions or modifiers are specific to air tasks; this is still under discussion.

    Prioritizing Targets

    Task Knowledge

    Key:

    Dashed link

    Solid link the first activity precedes the second
    there is an information flow from the first activity to the second.

    Task Structure: Produce Prioritized Target List

    Identify enemy Centers of Gravity

    : Although the air objectives have already been designed to target enemy Centers of Gravity, it's helpful to review the Centers of Gravity at this stage of planning. No information has yet been acquired on any special features of Centers of Gravity which are specific to target identification.

    Identify targets

    : Identifying targets consists of choosing targets which provide the maximum fulfilment of the air tasks, based on the task objectives chosen and on identified enemy Centers of Gravity.

    Prioritize targets

    should largely be based on the prioritization of corresponding air tasks. In practice, the planners spend a lot of time discussing the list of targets and moving certain targets up or down the prioritization; this action effectively incorporates the review and unification of the target list.

    Analyze feasibility of plan

    is a computerized process. The format of the output is not yet known.

    Brief JFACC

    and Obtain feedback from JFACC on Targets: see description of Obtain feedback from JFACC on Air Tasks above.

    Inference knowledge

    At present, the only information available which resembles inference knowledge for the activity of producing a prioritized target list is the ``assets perspective'' diagram shown in Figure InfStrucTargets. However, as discussed above, the inference structure is likely to be similar to the inference structure for identifying \& prioritizing air objectives, shown in Figures infairtp through infaircl.

    Figure 15: ACP Assets Perspective: Prioritize Targets

    Key:

    Labelled link the activity produces/consumes/uses/modifies the resourc
    Diamond Passive resourc
    Ellipse Computer Resourc
    Rounded rectangle Activit

    N.B. The asset database is not connected to any activity because it is not currently used by the planners.

    Prioritize Targets: Assets Perspective

    Domain Knowledge

    As discussed above, the domain knowledge for air tasks and targets consists of actions, modifiers, and centers of gravity which implicitly form the sixth level of the hierarchy shown in appendix Centers of Gravity; for information on these, read section DomainAirObj on domain knowledge for air objectives. It is possible that certain actions or modifiers are specific to targets; this is still under discussion.

    Appendix

    Knowledge acquisition using repertory grids

    appxrepgrid

    Repertory Grids

    The repertory grid technique for knowledge acquisition Gaines93b is derived from the personal construct theory of George Kelly Hinkle70. A grid is drawn with each activity forming a separate column in the grid. [9] The rows are labelled with attributes against which each activity can be classified on a 1-5 scale. Four of these attributes were provided from past experience; two more, ``Analytic vs Synthetic'' and ``Evaluation required'' were elicited [10] from Doug Holmes, who was the first expert with whom this technique was used. Each expert was then asked to fill in the grid with numbers between 1 and 5, representing their opinion of the values of various attributes. For example, Figure rgplxoo shows that, in Checkmate's opinion, identifying campaign objectives and military objectives takes very little time (1 = Short), but requires considerable experience (4 = Fairly Much). There is much useful information to be gained from this technique, by:

    [9] The repertory grid technique is normally used for acquiring attributes and values of concepts. In this case, the concepts are replaced by activities, in order to ascertain some important information about these activities.

    [10] These attributes were elicited using the triadic elicitation technique; choosing three domain items at random and asking the expert to specify any attribute on which one of the three items differs from the other two.

    Attributes of ACP Activities(Task Model level): Checkmate (amalgamated)

    Criteria used to fill in the grid

    appxrgcriteria

    Ideally, each expert should be questioned on the criteria he has used for filling in the repertory grid. However, the grids completed by Checkmate were filled in remotely, so this questioning has only been performed for a few key scores where the experts had differing opinions. Doug Holmes filled in his grid interactively (i.e. with the knowledge engineer present and occasionally prompting for information), and his comments about the criteria which he used for assigning values to attributes, gathered from the ``aside'' comments which he made, are given below:

    Experience required

    : The criterion which Doug was using here was the rank of the officer who normally carried out the activity; 3 indicated an activity which was normally assigned to a major, 4 an activity normally assigned to a lieutenant-colonel, and 5 an activity which normally required a colonel to perform it.

    Seriousness of mistake

    : Doug's criterion here was the length of time for which a mistake could go uncorrected in the planning process. For example, an incorrect decision on the enemy's most likely course of action could go uncorrected until the end of the war (thus meriting a high score), while a mistake in obtaining policy and guidance from CinC/JFC will always be corrected at the first briefing.

    Likelihood of mistake

    : No comments made.

    Time required

    : Doug stated that he was considering activities within a 3-day time frame (the length of an average planning cycle), so a small number indicated an activity taking a few minutes, whereas a large number indicated an activity taking hours or even a whole day.

    Analytic vs Synthetic

    : No comments made.

    Evaluation required

    : No comments made.

    Results

    Repertory grids were eventually obtained from five experts; Doug Holmes, Joe Roberts (a former member of Checkmate) and three current members of Checkmate staff. The full set of grids can be seen in section appxrgallgrids. Doug and Joe held the opinion that the Checkmate staff would be able to provide more accurate values for the repertory grid than they could, so the final analysis was done on a repertory grid which amalgamated the scores of the three Checkmate staff (see figure rgplxoo). The Checkmate staff largely agreed with each other on most of the attributes; where they did not agree, they were asked to provide explanations. These explanations often related to underlying assumptions; some of these explanations have been incorporated into the descriptions of activities given below, and a few values have been weighted according to the explanations given. The main area of disagreement was on the Analytic vs Synthetic attribute; it was felt that the knowledge engineer had given the Checkmate staff insufficient explanation on the meaning of this attribute, and so it was excluded from further analysis.

    The results of the repertory grid technique were subjected to statistical analysis (see Figure rgplxoxc). This analysis showed a strong correlation between the scores provided for Experience required and the scores provided for Seriousness of mistake; there was also a strong correlation between the scores provided for Time required and the scores provided for Evaluation required. The former correlation suggests an underlying philosophy, that it is more important to avoid serious mistakes than to minimize the total number of mistakes; the latter correlation is to be expected, since evaluation takes time. It is usually superfluous to include two strongly correlated attributes in the task model; Evaluation required has therefore been eliminated from the task model. However, both Seriousness of mistake and Experience required have been retained in the task model. This is done because the experts made a number of aside comments about the seriousness of mistakes which can be displayed with this attribute; while the level of experience required is an easy statistic to acquire and verify. It is easy because different levels of experience required correlate with the rank of the officer required to perform an activity, and the correlation can be checked easily using the heuristic used by Doug Holmes (see section appxrgcriteria).

    Repertory grids: expertise model level

    The repertory grid technique was also applied to the activities which appear in figures TaskStrucAirObj, TaskStrucTaskObj and TaskStrucTargets, in order to see if useful information could be obtained from this technique. Little analysis has been completed on these repertory grids so far. An example of an ``expertise model'' level repertory grid -- the one acquired from Doug Holmes -- is shown in Figure rgprdh.

    Attributes of ACP Activities (Task Model level): Doug Holmes

    Statistical analysis of repertory grids

    appxrgstats

    Once the grid has been completed, it's possible to perform statistical clustering on the value supplied, to see if there is any implicit categorization of the activities reflected in the scores provided for each activity. Figure rgplxoxc shows the results of performing statistical cluster analysis on the scores in the grid shown in Figure rgplxoo; Figure rgpriclu shows the results of cluster analysis on the grid shown in rgprdh. This gives some idea of the (subjective) similarity of activities on the attributes identified in the grid. The result of cluster analysis is a ``taxonomic'' hierarchy, in which the ``classes'' are actually nodes identifying the percentage of similarity between activities, or groups of activities. For example, in Figure rgpriclu, the identification of enemy Centers of Gravity is carried out 3 times (when prioritizing Air Objectives, Task Objectives and Targets); the latter two are scored identically (100\% similarity) whereas the prioritization of Air Objectives only merits 79\% similarity with these two.

    It is often instructive to ask the expert why certain activities are considered similar or different. In the example above, Doug suggested that this phenomenon was due to the fact that it's harder to identify Centers of Gravity at the first attempt; once the task has been done once, at a high level, it is less difficult at lower levels of detail. In another example, Doug was asked why ``Identify Targets'' was so different from the other activities (see Figure rgpriclu). By looking at the scores in the grid, it can be seen that ``Identify Targets'' is the only activity which requires a lot of time but does not require much evaluation or experience. This observation led the knowledge engineer to suggest that ``Identify Targets'' might be a suitable activity for automation using conventional (i.e. not knowledge-based) computing; Doug replied that such a task was already being undertaken.

    Cluster Analysis of Activities: Task Model Level

    Cluster Analysis of Activities: Expertise Model level

    Full set of acquired repertory grids

    appxrgallgrids

    Repertory Grid (Task Model level): Major Allison

    Repertory Grid (Task Model level): Major Alred

    Repertory Grid (Task Model level): Major Cardenas

    Repertory Grid (Task Model level): Doug Holmes

    Repertory Grid (Task Model level): Joe Roberts

    Repertory Grid (Task Model level): Checkmate amalgamated

    Repertory Grid (Expertise Model level): Major Allison

    Repertory Grid (Expertise Model level): Major Alred

    Repertory Grid (Expertise Model level): Major Cardenas

    Repertory Grid (Expertise Model level): Doug Holmes

    Repertory Grid (Expertise Model level): Joe Roberts

    The IDEF3 modelling technique

    appxidef3

    The following collection of IDEF3 diagrams represent the Air Campaign Planning process as elicited from a number of experts. The notation and benefits of this method are discussed in an accompanying document IDEF3.

    Five processes are shown at the highest level. Each of these is decomposed into subprocesses which are related to their parent by the numbering system. This consists of a prefix formed from the parent UoB reference number, the number of the decomposition and a unique reference number.

    Concurrency between subprocesses within a single decomposition is illustrated using asynchronous \& junctions. The fan-out junction indicates that both subprocesses must start, and the fan-in junction indicates that both of those subprocesses must complete before the next subprocess can initiate.

    The decomposition of UoB 3 ``plan the air campaign'' refers to various briefings. These are shown as synchronous referents which indicate that the referent process (the briefing) must initiate and complete before the focus process is considered to be complete.

    Finally the decomposition of UoB 5 ``evaluate air campaign'' uses exclusive OR junctions showing that if new policy and guidance has been received either the air campaign will cease or the air objectives will need to be reviewed as indicated by the unconditional Go-To referent, which loops the process back to 3.1.16 ``identify and prioritize air objectives''. When there is no new policy and guidance the air tasks will need to be reviewed, as indicated by the unconditional Go-To referent, which loops the process back to UoB 3.1.17 ``identify and prioritize air tasks''.

    "Preparing for Air Campaign Planning"\end{figure}

    \caption{Evaluating an Air Campaign}

    Domain knowledge for Air Campaign Planning

    List of objectives

    appxobjectives

    This list of objectives has been derived from a document supplied by Checkmate in November 1995, giving objectives which have been defined in planning for actual military exercises.

    This document describes these objectives using the following template:

    Perform Action on Center of Gravity with optional modifier.

    Some objectives are rephrased to enable them to fit this template. The action and the Center of Gravity are highlighted by using small capitals and teletype font respectively.

    The code numbers at the beginning of each objective show which higher level objectives are addressed by the lower level objectives; for example, air objective B5.1 fulfils CinC objective B5.

    CinC objectives

    Leadership

    A1:

    Isolate and neutralize YOC political control of armed forces

    A2:

    Isolate and neutralize YOC political leadership from the population

    A3:

    Ensure regional stability by reducing Yellowland Orangeland Cooperative (YOC). This is a national or political objective which should really be considered at a higher level of command than the other CinC objectives. However, it has been rephrased to:

    Reduce Yellowland Orangeland Cooperative (YOC) to ensure regional stability

    A4:

    Provide for Stability of the Region. This too is a national or political objective; it is too loosely defined for rephrasing to be possible.

    A5:

    Protect the lives of US citizens and forces in the region. This is probably better categorized as a National Population objective.

    A6:

    Isolate and neutralize YOC military control of armed forces

    A7:

    Isolate and neutralize YOC military's effect on population. For consistency with objective A6, this has been rephrased to:

    Isolate and neutralize YOC military control on population

    Key Production

    B1:

    Separate YOC military structure from primary electrical sources. In order to match objective B2, this has been rephrased to:

    Deny use of electricity to YOC military structure.

    B2:

    Deny use of primary electrical sources to YOC population. Rephrased [11] to:

    Deny use of electricity to YOC population

    B3:

    Neutralize YOC petroleum production supporting warfighting effort

    B4:

    Deny use of petroleum products to YOC population

    B5:

    Neutralize production of chemical products

    B6:

    Prevent chemical products from becoming weapons of mass destruction. This has been rephrased to:

    Deny use of chemical products for the manufacture of weapons of mass destruction.

    B7:

    Neutralize YOC special weapons capability and delivery means

    B8:

    Defend against Weapons of Mass Destruction. The current phrasing of this objective is identical to objective E7; it has therefore been removed from this section. Air objectives B8.1, B8.2 and B8.3 are renumbered to E7.1, E7.2 and E7.3.

    [11] The term ``electrical production", which appears in the Air Objectives (e.g. B2.1), is more general than ``primary electrical sources". However, ``electricity" is a more general term still, which is at the same level as ``petroleum products".

    National Infrastructure

    C1:

    Deny use of national roadways for transport of military equipment

    C2:

    Deny use of national railways for transport of military equipment

    C3:

    Deny use of national waterways for transport of military equipment

    C4:

    Deny use of national communications nets to transport military information

    C5:

    Interrupt the flow of goods on national roadways

    C6:

    Interrupt the flow of goods on national railways

    C7:

    Interrupt the flow of goods on national waterways

    C8:

    Interrupt the flow of information on national communication networks

    C9:

    Build sufficient combat power for future offensive operations. This has been rephrased to:

    Obtain sufficient Blue Forces for future offensive operations.

    C10:

    Ensure Freedom of Navigation. This has been rephrased to:

    Permit safe access to national waterways for Blue shipping.

    C11:

    Sustain (Blue) Forces for Minimum of 45 Days

    National Population

    D1:

    Deny use of national television systems to transmit military information

    D2:

    Deny use of national radio systems to transmit military information

    D3:

    Deny use of national computer systems to transmit military information

    D4:

    Deny use of national television systems to influence YOC population

    D5:

    Deny use of national radio systems to influence YOC population

    D6:

    Deny use of national computer systems to influence YOC population

    D7:

    Conduct NEO of US personnel and other volunteer Foreign Nationals

    D8:

    Neutralize YOC economic centers to slow the flow of military resources

    D9:

    Deny access to YOC economic centers. This has been rephrased to:

    Deny use of national transportation networks leading to YOC economic centers.

    In this form, it can be seen that this is an infrastructure objective rather than a national population objective.

    D10:

    Employ C2W methodologies.

    Use C2W methodologies to influence YOC population.

    This is a high level objective; in order to match the level of detail of the other objectives, individual C2W methods should be specified.

    Fielded Forces

    E1:

    Deter YOC aggression against B/G

    E2:

    Deter Yellowland aggression

    E3:

    Conduct Land, Sea and Air operations to restore the sovereignty of B/G. Like A3, this is a national or political objective which should really be considered at a higher level of command than the other CinC objectives. However, it has been rephrased to:

    Restore the sovereignty of B/G by fielding military forces.

    E4:

    Stop YOC forces north of Desired Area

    E5:

    Defend B/G from YOC Attack

    E6:

    Defend Greyland from YOC Attack

    E7:

    Defend Against Weapons of Mass Destruction. Rephrased to:

    Defend Blue forces Against Weapons of Mass Destruction

    E8:

    Disrupt YOC Special Forces Capability

    Air Objectives

    AirObj

    Leadership

    A1.1:

    Disrupt YOC political control of armed forces

    A1.2:

    Destroy YOC political control of armed forces

    A1.3:

    Disrupt and Degrade YOC intelligence capability

    A1.4:

    Isolate YOC National Command Authority

    A2.1:

    Disrupt YOC political control of population

    A2.5:

    Destroy YOC political control of population

    A6.1:

    Disrupt YOC military control of armed forces

    A6.2:

    Destroy YOC military control of armed forces

    A6.3:

    Disrupt and Degrade YOC intelligence capability

    A7.1:

    Disrupt YOC military control of population

    A7.2:

    Destroy YOC military control of population

    Key Production

    B1.1:

    Disrupt key electrical facilities providing power to YOC military

    forces B1.2:

    Destroy electrical facilities providing power to YOC military forces

    B2.1:

    Disrupt electrical production to YOC

    B2.2:

    Destroy electrical production to YOC

    B3.1:

    Disrupt petroleum production providing fuel to YOC military forces

    B3.2:

    Destroy petroleum production providing fuel to YOC military forces

    B4.1:

    Disrupt petroleum production throughout YOC

    B4.2:

    Destroy petroleum production throughout YOC

    B5.1:

    Disrupt chemical production facilities

    B5.2:

    Destroy chemical production facilities

    B7.1:

    Destroy strategic targets (pol-mil C2 and NBC/TBM capability)

    National Infrastructure

    C1.1:

    Drive YOC into desired chokepoints and restricted LOCs

    C1.2:

    Disrupt movement of YOC forward corps and committed 2nd echelon forces

    C2.1:

    Drive YOC into desired chokepoints and restricted LOCs

    C2.2:

    Disrupt movement of YOC forward corps and committed 2nd echelon forces

    C3.1:

    Drive YOC into desired chokepoints and restricted LOCs

    C3.2:

    Disrupt movement of YOC forward corps and committed 2nd echelon forces

    C3.3:

    Attack critical naval targets. Given that this supports CinC objective C3 (Deny use of national waterways for transport of military equipment), this has been rephrased to:

    Attack naval transport ships which are capable of transporting military equipment on national waterways.

    C4.1:

    Disrupt command and control of YOC Air/Land/Sea forces.

    C4.2:

    Disrupt and Degrade YOC intelligence capability

    C8.1:

    Disrupt command and control of YOC Air/Land/Sea forces

    C8.2:

    Disrupt and Degrade YOC intelligence capability

    C9.1:

    Deploy (Blue) forces capable of deterring YOC aggression

    C9.2:

    Deploy (Blue) forces capable of supporting NEO

    Fielded Forces

    E4:

    Disrupt YOC Ground Scheme of Maneuver. Rephrased to: Disrupt Ground Scheme of Maneuver of YOC mechanized land forces

    E7.1:

    Destroy strategic targets (pol-mil C2 and NBC/TBM capability)

    E7.2:

    Disrupt YOC Weapons of Mass Destruction capability

    E7.3:

    Destroy YOC Weapons of Mass Destruction capability

    Air Tasks

    TaskObj

    These had not been sorted by Checkmate at the time of writing. Categorization has been performed by the author of this document. Where a air task falls into one category but services an air objective in another category, it is categorized under the former. For example, Destroy known NBC logistics support is categorized under National Infrastructure, even though it supports the air objective Disrupt YOC Weapons of Mass Destruction Capability, which is categorized under Key Production.

    Leadership

    YOC forces:

    Destroy key national headquarters

    Disrupt YOC reconnaissance/surveillance capabilities

    Disable known NBC C3 capability

    Disrupt C3I to frontline offensive units

    Disrupt enemy control of air operations and (control of) air defenses

    Destroy key command centers

    Destroy air defense C3I

    Disrupt key command and control nodes

    Disrupt TBM C2

    Neutralize airborne C3 capability

    Disrupt key C3 nodes

    Destroy key YOC LADS C2 facilities

    Destroy command centers \& comm nodes to disrupt YOC political and military direction of armed forces

    Destroy army, corps, and division HQs or isolate them from subordinate units

    Sever LOCs in support of GCC ground scheme of maneuver. Rephrased to: Sever local command centers in support of GCC ground scheme of maneuver. Rephrased to:

    Destroy coastal surface surveillance radar C2

    Destroy key YOC LADS C2 facilities

    Disrupt naval C3I

    Disrupt Political Leadership of YOC Forces

    Destroy Command and Control Facilities in the forward area

    Destroy key YOC LOC's supporting forward troops

    Render ineffective C2 from YOC leadership to ballistic missiles

    Blue forces:

    Provide battle management/C3I capability

    Provide surveillance and reconnaissance of region

    Destroy YOC intelligence collection/dissemination capability

    Exploit CUWTF intel and targeting when tasked by the B/G C3

    Key Production

    Destroy known NBC research facilities

    Destroy known NBC production facilities

    Attrit military production capability

    Disrupt electrical power supply to LADS and pol-mil C3I

    Disrupt/destroy military vehicles, armor, and artillery assembly \& repair facilities

    Disrupt/ destroy remaining POL production and storage

    Disrupt/ destroy remaining munitions and propellant production and storage

    Disrupt NBC production and storage capability

    Disrupt nuclear reactor \& fuel/ore processing

    Destroy YOC mining capability

    Disrupt YOC Electrical Power Distribution

    Destroy Naval Production Capability

    National Infrastructure

    Disrupt YOC naval port operations

    Destroy logistics/maintenance/supply areas

    Disrupt SATCOM capability

    Destroy known NBC logistics support

    Destroy known NBC stockpiles and storage facilities

    Disrupt electrical power grid

    Destroy key naval communications nodes and EW/GCI

    Destroy railroad transportation terminals and facilities

    Destroy key bridges \& tunnels

    Disrupt operations along LOCS/chokepoints

    Destroy POL storage/distribution facilities

    National Population

    None given.

    Fielded Forces

    YOC forces

    Attrit follow on forces

    Attrit front line forces

    Attrit enemy fighter/bomber force

    Destroy key SAM sites

    Destroy SAM sites threatening air operations throughout YOC

    Disrupt maneuver and momentum of committed forces with CAS

    Neutralize YOC 240/170mm artillery

    Destroy remaining mech \& armor assets of 2nd echelon forces and strategic reserves

    Disrupt YOC SAM/AAA sites along coastal corridors

    Destroy Silkworm missile/sites and storage

    Disrupt/destroy SAM/AAA/GCI affecting insertion corridors and drop zones

    Render ineffective YOC target acquisition systems

    Destroy landmines

    Destroy key EW/GCI sites supporting YOC defense assets

    Destroy coastal surface surveillance radar sites and C2. Divided into two: Destroy coastal surface surveillance radar sites is categorized here; destroying the radar's C2 is categorized under Leadership

    Neutralize YOC capability to utilize its aircraft and airfields. This is a higher level objective, since ``capability to utilize'' might encompass fuel, pilots, repair facilities, etc.

    Destroy major YOC surface and sub-surface combatants and SOF insertion platforms

    Disrupt YOC Ground Forces With CAS

    Destroy Tactical SAMs in YOC

    Destroy Strategic SAMs in YOC

    Destroy EW/GCI radars within 100 Km of the border

    Disrupt YOC Fighter/Bomber Operations

    Destroy Coastal Surveillance/Fire Control Radars

    Destroy YOC SAM/AAA sites

    Destroy Silkworm missiles/sites and storage

    Destroy key EW/GCI sites supporting YOC defense assets

    Disrupt YOC fighter capability

    Disrupt/destroy SAMs on border, AAA near drop zones, and EW/GCI threatening CUWTF insertions

    Disrupt YOC SAM/AAA sites along coastal corridors

    Disrupt YOC bomber capability

    Disrupt maneuver and momentum of committed forces with CAS

    Disrupt movement \& maneuver into M-K corridor. Rephrased to: Disrupt movement \& maneuver of forces into M-K corridor

    Attrit forces in Wonchor corridor

    Disrupt/destroy 240mm/170mm artillery beyond the FSCL

    Disrupt 240mm/170mm artillery inside the FSCL

    Disrupt mechanized and armored formations between FLOT and FSCL

    Destroy YOC SOF infiltration aircraft

    Destroy major YOC surface and sub-surface combatants and SOF insertion platforms

    Destroy SAMs beyond 100km of the DMZ

    Assist in holding defense north of capital city by destroying YOC non-hardened artillery and vehicles

    Attrit Naval Bases and their Employment Capability

    Destroy enemy OCA assets

    YOC supply, storage \& repair facilities

    Destroy TBM launchers, storage, and support

    Disrupt TBM shipment/transshipment

    Disrupt resupply of naval POL, munitions, \& spares

    Destroy ammo storage

    Destroy naval ship repair \& resupply facilities

    Disrupt naval surface craft bases, support facilities, and naval C3I. This objective has been divided into 3 objectives: Disrupt naval surface craft bases and Disrupt support facilities are categorized under Fielded forces, while disrupting naval C3I is categorized under Leadership.

    Disrupt marshalling areas and sustainment capability beyond the FSCL

    Disrupt marshalling areas, supply, and corps C2 beyond FSCL

    Blue forces

    Employ passive defensive measures. Rephrased to: Assign and Provide military equipment which is capable of passive defense.

    Provide ground/naval point defense for protection of Blue COGs from air \& TBM attacks

    Conduct CAS in support of the Rear Area Security Forces

    Support B/G ground scheme of maneuver and deception plan through AI. Rephrased to: Provide AI to support B/G ground scheme of maneuver and deception plan.

    High level objectives

    The following were listed as air tasks, but are more appropriately categorized as either CinC objectives or Air Objectives.

    Disrupt YOC ability to employ weapons of mass destruction (WMD). This is almost identical to Air Objective B8.2, and it belongs at the Air Objectives level.

    Disrupt Employment of Weapons of Mass Destruction by YOC Forces

    Disrupt military activity in the area of the planned NEO

    Destroy command centers and comm nodes to disrupt YOC political direction of armed forces

    Unclassified

    Destroy RADRELs -- unknown abbreviation

    Employ SIGINT collection assets -- unknown abbreviation

    Employ HVAA assets/Provide adequate HVAA protection -- unknown abbreviation

    Centers of Gravity

    Centers of Gravity

    The centers of gravity which have been elicited from the sets of objectives have been categorized into hierarchies. These hierarchies are shown below. The aim of producing these hierarchies is to permit a near-exhaustive approach to identification of centers of gravity. By working from the top of a hierarchy downwards, planners can easily identify if they have considered all relevant categories of centers of gravity.

    The 5 top level centers of gravity in these hierarchies are Leadership, Key Production, National Infrastructure, National Population and Fielded Forces. These correspond to Col. Warden's ``5 rings" approach to identification of centers of gravity. The approach which has been taken to developing these hierarchies is top-down extrapolation; that is, if there are several centers of gravity at the same level of a hierarchy, and one of them is decomposed in a certain way, then the others are assumed to be decomposable in the same way. An example of this can be found in Figure cginf1, which shows centers of gravity connected with transportation. Since road, rail, inland waterways, coastal shipping and civil air transport are all transportation networks, then the hierarchy assumes that the key centers of gravity for all these types of transportation can be categorized as nodes, choke points or segments.

    A key component of the hierarchies which contributes to the goal of identifying all relevant centers of gravity is the identification of intra-hierarchy links. These show where a center of gravity in a different part of the hierarchy is relevant to the current center of gravity. The name of the related hierarchy is displayed in the bottom half of the CoG node. For example, one form of communication is by newspapers and printed media; the distribution of these requires transportation. A planner examining the segments of the newspaper communication network would therefore be directed to look at the centers of gravity for the appropriate type(s) of transportation.

    Following these intra-hierarchy links may lead to the identification of unexpectedly relevant centers of gravity. To take an example based on real life, a planner who was attempting to prevent a large army of tanks from invading would examine the hierarchy for Fielded Forces, and would discover ``Logistics'' as a center of gravity. In this category, he would be invited to consider Ammunition, Fuel, Spare Parts and General Munitions. On examining Fuel, he might decide that fuel storage is a potential center of gravity; but not only is it difficult to attack, it is also an inadequate supply for a large army of tanks. This inadequacy suggests that the other possible source of fuel -- a supply line -- should be considered. [12] Here an intra-hierarchy link applies; the fuel is either supplied by transport vehicles (in which case a link must be made to National Infrastructure: Transportation) or, as in this case, it is supplied by pipeline, in which case the appropriate starting point is National Infrastructure: Fuel. Since fuel pipelines form a network, then nodes, choke points and segments must be considered. The segments in a fuel network are pipelines; it turns out that there are only 5 pipelines used for pumping fuel to these storage areas, which makes the pipelines a possible center of gravity. However, fuel pipelines are hard to attack and easy to repair. The nodes in the network are the input fuel plants and the storage areas, which are either too heavily defended or too far away to consider. The consideration of choke points, however, leads to the identification of three (undefended) pumping stations at a point where the gauges of the fuel pipes change, thus ensuring that all fuel is routed through these three stations.

    [12] In fact, there are two other possible sources of fuel; direct access to a fuel production plant, and siphoning it from other vehicles. The former is unlikely to avoid notice, and the latter is infeasible for a large army, even if they were not using specialized fuel.

    Observations

    1. The centers of gravity which are identified in the different types of objectives correlate fairly closely with the different levels of the hierarchies. Most of the centers of gravity identified in the CinC objectives appear in the third level of the hierarchy (e.g. national roadways; most centers of gravity identified in the air objectives appear in the fourth level of the hierarchy (e.g choke points); and most centers of gravity identified in the air tasks appear in the fifth level of the hierarchy (e.g. bridges).
    2. While the planners do identify Blue Centers of Gravity as well as hostile and adjoining Centers of Gravity, there is evidence that Blue Centers of Gravity are not considered in the same level of detail. The centers of gravity identified for Blue in the CinC objectives (e.g. ``sustain forces for a minimum of 45 days'') and in the air objectives (e.g. ``deploy forces'') belong to the first or second levels of the hierarchies of centers of gravity. In addition, the actions applied to these centers of gravity imply a higher level of abstraction; for example, sustaining a force implies supplying all the needs of that force, which implicitly requires a complete infrastructure to be established for that force (bringing in fuel, taking out casualties, etc). Infrastructure is one of Col. Warden's ``5 rings", and can therefore be found at the top level of the hierarchy of centers of gravity. Similarly, deploying a force requires considerable attention to be paid to the transportation requirements of that force [13] including but not limited to military air transport; transportation is a 2nd level center of gravity.
    3. [13] This assumes that deploying a force refers to the movement of a force into the battleground, as opposed to allocating new units to the theatre.

      It would seem sensible (if time is available) for the planners to analyze Blue centers of gravity to the same level of detail as hostile and adjoining centers of gravity (if possible), to the level of identifying likely targets for any hostile and adjoining planners who might be conducting a similar exercise.

    "CoGS: Leadership"cglead

    "CoGS: Key Production 1: General"cgprod1

    "CoGS: Key Production 2: Military"cgprod2

    "CoGS: National Infrastructure 1: Transportation"cginf1

    "CoGS: National Infrastructure 2: Communications"cginf2

    "CoGS: National Infrastructure 3: Fuel \& Power"cginf3

    "CoGS: National Population"cgpopul

    "CoGS: Fielded Forces 1: Special Weapons"cgforce1

    "CoGS: Fielded Forces 2: Land forces"cgforce2

    "CoGS: Fielded Forces 3: Naval forces"cgforce3

    "CoGS: Fielded Forces 4: Air forces"cgforce4

    "CoGS: Fielded Forces 5: Logistics"cgforce5

    Actions

    Goals

    The actions listed here are those found in air objectives (whose format is ``Perform action on center of gravity with modifier''). The actions identified are listed below. The observations which were made on actions are likely to be superseded by current discussions, so have not been included in this document.

    The actions identified are as follows:

    Modifiers

    appxmodifier

    Many CinC objectives and Air objectives, and some air tasks, have associated modifiers. These modifiers may be:

    Lists of identified modifiers can be seen in table CinCmodifiers and table AirModifiers.

    Observations

    The modifiers are diverse, but a few patterns can be seen:

    YOC military control

    national computer systems

    national waterways

    national waterways

    national computer systems

    CinCmodifiers

    Geographical
    US citizens in the region
    US forces in the region
    YOC aggression against B/G
    YOC forces north of Desired Area
    B/G (a geographical modifier implicit in the CoG)
    Temporal
    YOC economic centers
    to slow the flow of military resources i.e. until the flow of military resources is sufficiently slow
    Categorical
    YOC political control YOC armed forces
    YOC armed forces
    YOC political control YOC population
    YOC military control YOC population
    primary electrical sources YOC population
    petroleum products YOC population
    national television systems YOC population
    national radio systems YOC population
    YOC population
    national roadways Transport of military equipment
    national railways Transport of military equipment
    Transport of military equipment
    national roadways Transport of goods
    national railways Transport of goods
    Transport of goods
    national communications networks Transmit military information
    national television systems Transmit military information
    national radio systems Transmit military information
    Transmit military information
    YOC petroleum production supporting warfighting effort
    chemical products for the manufacture of weapons of mass destruction.
    national waterways for Blue shipping.
    national transportation networks leading to YOC economic centers.
    Blue forces Against Weapons of Mass Destruction
    Geographical
    Temporal
    Categorical
    YOC political control YOC armed forces
    YOC military control YOC armed forces
    electrical facilities YOC armed forces
    petroleum production YOC armed forces
    chemical production? YOC armed forces
    YOC political control YOC population
    YOC military control YOC population
    electrical production YOC population
    petroleum production YOC population
    chemical production YOC population
    naval transport ships which are capable of transporting military equipment on national waterways.
    command and control YOC Air/Land/Sea forces
    Capability
    (Blue) forces capable of deterring YOC aggression
    (Blue) forces capable of supporting NEO

    Modifiers: Air Objectives Level

    The CommonKADS methodology

    CommonKADSAppendix

    Organizational Model

    The CommonKADS organizational model recommends examination of an organization from five major perspectives:

    Each perspective is represented by a single diagram, or by text. These five perspectives can be combined into cross-products which provide the most useful information. For example, the CommonKADS Organizational Model was used to model a Social Security department; a cross-product of activities and structure was produced which highlighted an area of inefficiency, because one of the activities (archiving) was being performed by three different divisions of the department deHoog93.

    Enriching the CommonKADS Organizational Model for the ACP domain

    The process of domain familiarization also suggested that some aspects of the organization surrounding ACP -- in particular, power/authority relationships -- would benefit from being represented in more detail than the CommonKADS Organizational Model currently supports. It was decided that the multi-perspective approach to organizational modelling would be maintained, but that the perspectives would be altered to permit the representation of rights of access to resources and information, and the representation of who was responsible for performing which activities. This distinction was derived from the ORDIT project which is intended to support organizational requirements definition Dobson94. The result was that a set of perspectives were developed based on three basic entities: activities, agents and resources. Figure richmodel shows the perspectives which were used, and how they were combined.

    Task model

    The Task model shows the tasks carried out in the course of a particular process. If the organizational model indicates a particular function which might usefully be automated, a task model can be produced which provides a detailed description of the tasks which carry out that function. The task model may also identify the inputs and outputs of each process (or task), and the decomposition of tasks into more specific sub-tasks. Its purpose is to allow identification of tasks which could usefully be performed by an automated system, or by a program and a user working in conjunction.

    A typical task model is shown in Figure fg:taskmodel, using the graphical format which was originally specified in deGreef92. The model represents the tasks involved in the preparation of a meal; such a model might be used by a large restaurant or a hotel which was considering a reorganization of its business.

    Task model: Preparing a Meal

    In this diagram, the boxes represent tasks; the arrows represent inputs and outputs of tasks; the lighter lines show the decomposition hierarchy of tasks; and the shading indicates those tasks which are worth considering for implementation using a computer system.

    Agent Model

    The Agent model represents the capabilities required of the agents who perform a process, and constraints on their performance. The agent model represents all the agents which participate in a problem solving process. It is often useful to develop two agent models: one which is based on the task model, showing which agents are currently involved in performing particular tasks, and one which predicts the agents and capabilities required to carry out future tasks.

    An example of an agent model, using the graphical format suggested by the CommonKADS Workbench, is shown in Figure fg:agentmodel.

    Agent model: Preparing a Meal

    Communication Model

    The Communication model shows the communication required between agents during a process; it may also specify the form of messages, and specify who takes the initiative in a transaction. The communication model indicates all the transactions which take place between different agents. Normally, this will comprise transactions between a knowledge based system and other agents. It is therefore often convenient to combine the Communication model with the Agent model.

    An example of an communication model, using the graphical format suggested in the KADS-II report on the CommonKADS Communication Model (Waern94b) is shown in Figure fg:commodel.

    Communication model: Preparing a Meal

    Expertise Model

    The Expertise model is a model of the expertise required to perform a particular task. This model is divided into three components:

    Expertise Model: Domain Level

    The domain knowledge in the model of expertise represents the declarative knowledge which has been acquired. CommonKADS suggests that each item of declarative knowledge is classified into one of the four categories outlined below:

    Once items of domain knowledge have been classified, they can be used in domain models, which show relations between different items of knowledge. For example, a domain model might show all acquired examples of one concept causing another; or it might show a taxonomic hierarchy of concepts, connected to each other by is-a relations. Figure dommodelps shows an example of a domain model; this model represents indicative relationships between certain symptoms of a manufacturing machine, and possible faults with that machine.

    A domain model which links expressions with concepts

    CommonKADS also recommends that the domain knowledge is represented at a more abstract level, at which generic statements about the structure and contents of domain models are expressed. The terms used at this abstract level are stored in a model ontology, and the statements at this abstract level are known as model schemata. This abstraction is intended to form a basis for re-using domain models in different problem solving situations.

    The domain knowledge in the CommonKADS Expertise model therefore consists of a domain ontology (i.e. a collection of classified terms) and a number of domain models which represent relations between items from the domain ontology. In addition, it is recommended that an abstract view on the domain knowledge is created.

    Expertise Model: Inference Knowledge

    The second subdivision of the Expertise Model records knowledge about inference which may be performed in order to solve a problem. This information is represented in inference structures, which are diagrams showing how various inferences and knowledge roles link together to perform problem solving.

    Both KADS-I and CommonKADS provide a library of generic inference structures, indexed by the type of task which is being performed (classification, diagnosis, configuration, etc.). These generic inference structures can be used as a starting point for developing an inference structure for a particular application.

    An example of an inference structure can be seen in Figure fg:infstruc.

    Inference structure: Machine Fault Diagnosis

    In this inference structure, machine fault diagnosis is seen as a process of:

    1. decomposing a set of possible faults, on the basis of some symptoms, to produce a set of hypotheses about the current fault;
    2. selecting a suitable test to narrow down the set of hypotheses;
    3. deciding what the expected result of this test would be if any of the hypotheses were correct;
    4. performing the test and observing or measuring the result;
    5. updating the set of hypotheses, by removing any which do not conform with the result of the test.

    The last four steps are performed iteratively until only one hypothesis remains, or until no further tests are available. This inference structure therefore represents the ``Sherlock Holmes'' approach to diagnosis: by eliminating the impossible, whatever remains must be the truth.

    It can be seen that knowledge roles are represented as boxes, and inference steps as ovals; arrows link knowledge roles with inference steps. Variations on the basic graphics include inference steps with a ``double oval'' (indicating that this inference step is expanded into more detail in a lower level inference structure) and bold outlines on knowledge roles (which indicate that a knowledge role is static; that is, the knowledge it represents is not changed in any way during problem solving.

    Expertise Model: Task Level

    Task and Strategy

    The task level of the model of expertise is normally represented as a graphical hierarchy. However, textual representation is also possible, and can be more informative; see Kingston93b for an example.

    Task knowledge differs slightly between KADS-I and CommonKADS, because KADS-I has an explicit strategy level of knowledge, whereas CommonKADS considers strategic knowledge (now known as problem solving knowledge) to be orthogonal to the domain-inference-task decomposition of the Expertise Model. In both cases, however, the task knowledge which needs to be modelled consists of various tasks which have to be performed and actions which have to be achieved, and breakdowns of these tasks into subtasks. In addition, CommonKADS has an explicit category for tasks which pass information to or from the problem solving process (known as transfer tasks); a selection of problem solving methods (pre-defined generic task structures); and a detailed specification of how tasks should be defined.

    An example of a task structure can be seen in figure fg:taskstruc.

    Task structure: Machine Fault Diagnosis

    This diagram represents a decomposition hierarchy, showing the tasks which must be performed in order to diagnose faults in a machine.

    CommonKADS also provides definitions for a library of problem solving methods i.e. pre-defined task structures for certain tasks. However, this ``library'' currently contains very few problem solving methods (cf. Kingston93).

    Design Model

    The Design model culminates in the design of a knowledge based system to perform all or part of the process under consideration. The design process in CommonKADS is broken down into three stages:

    While it is possible to represent the Application Design (at least) in diagrams, CommonKADS does not recommend any graphical format for the Design Model; instead, it is expected that the different stages of this model will be represented using text. However, during the course of a recent project, a graphical representation for the Design Model was used (see figure fg:designmodel); the four columns of nodes represent:

    Design model: Diagnosing faults in machinery
