The CDE is a java-based, domain editor for constructing an operational
specification of a planning domain. It can import the initial
specification produced by the CPM and CPM toolset and can be used to
translate to the language required by the O-Plan planning system (Task
Formalism).
The CDE can be launched from the control panel or executed from a
command prompt in the installed directory:
"./cde". CDE runs as a java applet (using
appletviewer, which is part of the JDK) which means that it may
eventally be integrated into set of web pages and launched from a
browser, but most of the current browsers fail to provide adequate
support for the java api's. The initial specification which was
translated and exported from the CPM toolset can be read into the

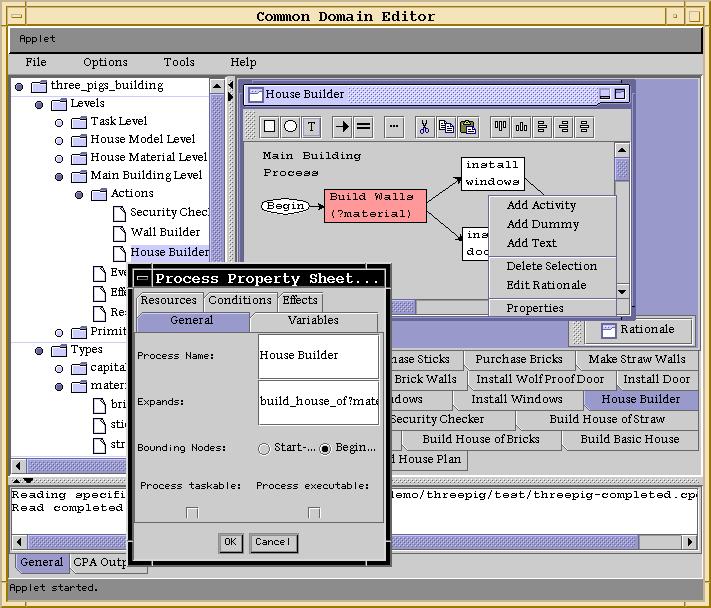

CDE. See figure 1 for an example of domain editing session.
Figure 1 - The CPM toolset
See the "{target dir}/docs/papers/" directory for the CDE users guide
which provides detailed information for working with the editor. The
final specification may then be translated to Task Formalism using the
File|Export to..|TF v2.3 menu option.
- Running the translator from the command line.
CDE also provides access to its CPD->TF translator on the command
line. For example, the command "java -classpath cde.jar cpd <
input.cpd > output.tf". translates a cpd (sorted FOL) file to
TF.
- Downloading and Installing the JDK
The CDE takes advantage of the latest java classes in the Java
Foundation Class (JFC) library (formerly known as Swing). In order to
ensure compatability and performance, download and install at least
the JDK 1.2 beta 4 or later. See http://www.java.sun.com/ for
downloading.
- Setting up security keystore
CDE provides lots of features for managing domains. For example: it
supports opening and saving specifications over the internet (using
FTP) or to a local file system; internet-based communication with
other tools (e.g. CPA); reading of system properties (e.g. user name);
etc. Much of this was simply not allowed in an applet for early
versions of java. The java security model has changed significantly to
provide much more flexibility. In order to work with the CDE (using
appletviewer), a few security measures must be addressed.
Detailed information about the new security architecture can be found
here. The
first step is to create a new security keystore using keytool (which
comes as part of the JDK). Keytool can then also be used to import the
certificate which can be found at: "{target
dir}/source/school.key". This certificate was used to "sign" the java
applet archives so they can be authenticated. The last two steps
involve setting up "policy entries" for the security and in
configuring appletviewer to use the new policy.
- Setting up security policy
The JDK also contains a tool for managing security policies:
policytool. Policytool provides a graphical user interface for setting
up policy entries. One policy entry must be made for CDE and one for
CPE although the rights will be identical. This gives these tools the
permission to perform the specified acts. The required permissions are
listed in "{target dir}/source/policy". Ensure that the appropriate
{target dir} is specified and the correct socket for the CPA
communication is entered.
